Product Code: 303401
1/4″ x 26 BSF 15/16″ Long Straight Grease Fitting
303401
Description
1/4″ x 26 BSF Hydraulic Straight Grease Fitting.
15/16″ Overall Length.
Case Hardened and Zinc Plated with Yellow Chromate Finish.
Ball Check to prevent the ingress of dirt.
Stress Relieved Spring for prolonged service life.
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |

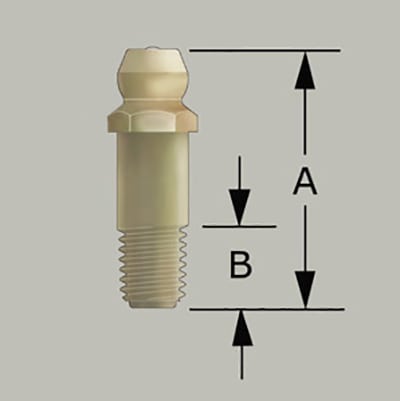

| Dimension A (Inch) | 0.93 |
| Dimension A (mm) | 23.6 |
| Dimension B (Inch) | 0.27 |
| Dimension B (mm) | 6.9 |
| Dimension C (Inch) | N/A |
| Dimension C (mm) | N/A |
| Hardened | Yes |
| Hole | 1/4 BSF |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 9/32" Hexagon |
| Thread | 1/4 x 26 BSF |
| Thread Type | British |
| Zinc Plating | Zinc Yellow Chromate |
