Product Code: 810345

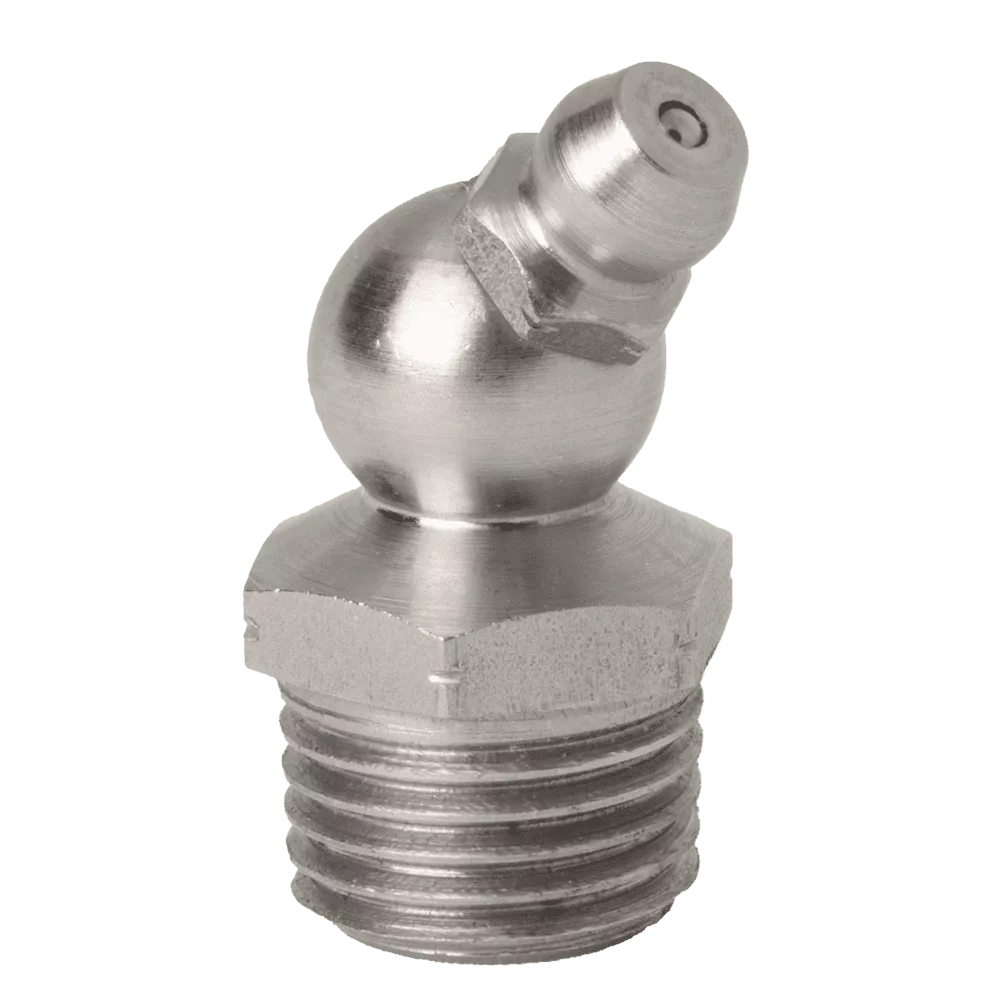

1/4″ x 19 BSPT (R1/4″) 45˚ Grease Fitting 303 Stainless Steel
810345
Description
1/4″ x 19 BSPT (R1/4″) 45˚ Grease Fitting.
303 Grade (A2 or V2A) Stainless Steel Body. 302 Grade Stainless Steel Spring. 440C Grade Stainless Steel Ball.
Material Certificates Available.
Additional information
| Weight | 9 kg |
|---|---|
| Angle | 45 |
| Ball Check | Yes |

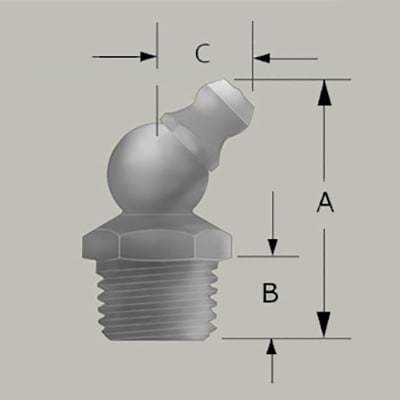

| Dimension A (Inch) | 1.11 |
| Dimension A (mm) | 28.2 |
| Dimension B (Inch) | 0.34 |
| Dimension B (mm) | 8.6 |
| Dimension C (Inch) | 0.4 |
| Dimension C (mm) | 10.2 |
| Hardened | No |
| Hole | 1/4 British Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 14mm Hexagon |
| Special | Yes |
| Thread | R1/4 x 19 BSPT |
| Thread Type | British |
| Zinc Plating | No |
