Product Code: 812690

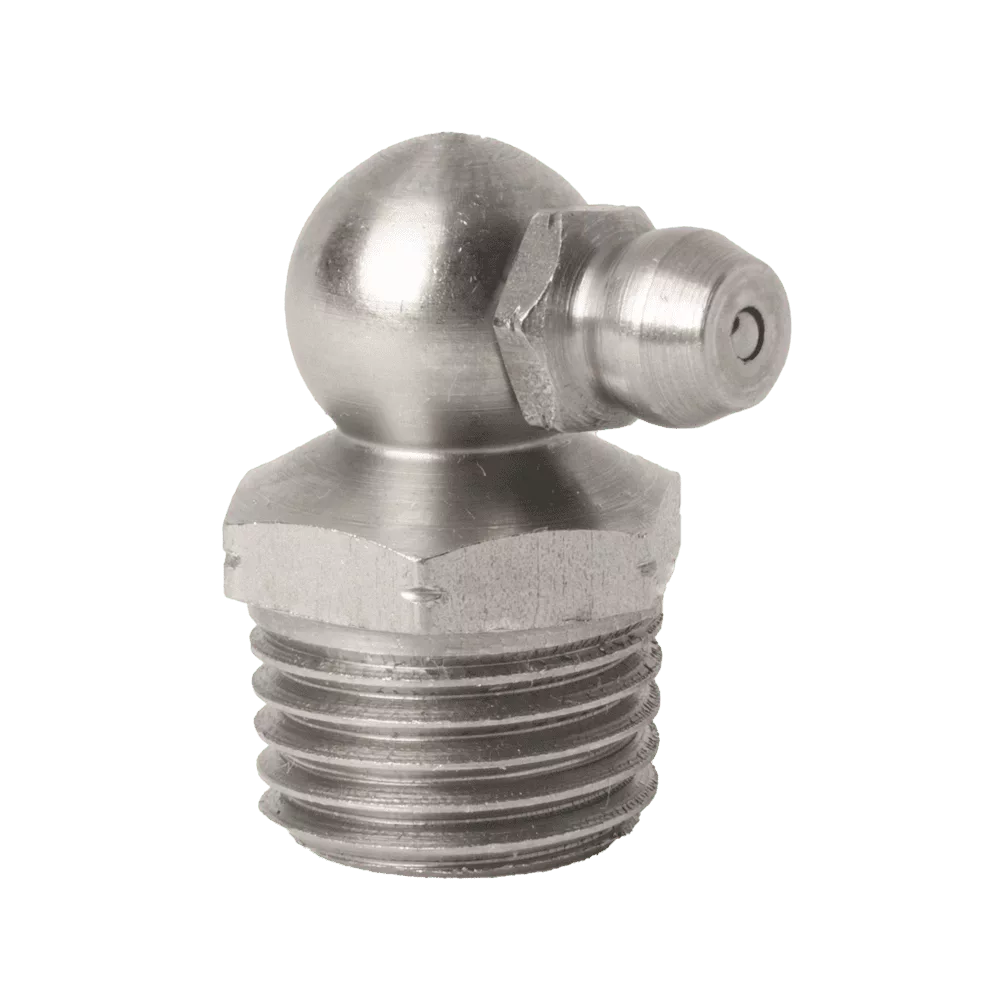

1/4″ x 18 PTF Special Extra Short 90˚ Grease Fitting 303 Stainless Steel
812690
Description
1/4″ x 18 PTF Special Extra Short Hydraulic 90° Grease Fitting.
303 Grade Stainless Steel (A2 or V2A) Body
302 Grade Stainless Steel Spring
440C Grade Stainless Steel Ball.
Material Certificates Available.
Additional information
| Weight | 9 kg |
|---|---|
| Angle | 90 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.93 |
| Dimension A (mm) | 23.6 |
| Dimension B (Inch) | 0.34 |
| Dimension B (mm) | 8.6 |
| Dimension C (Inch) | 0.47 |
| Dimension C (mm) | 11.9 |
| Hardened | Yes |
| Hidden | No |
| Hole | 1/4 American Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Product Long | Normal |
| SB quantity | 50 |
| Spanner Wrench Size | 14mm Hexagon |
| Special | Yes |
| Stock Item | Class 1 Parts |
| Thread | 1/4 x 18 PTF |
| Thread Type | American |
| Zinc Plating | Yes |
