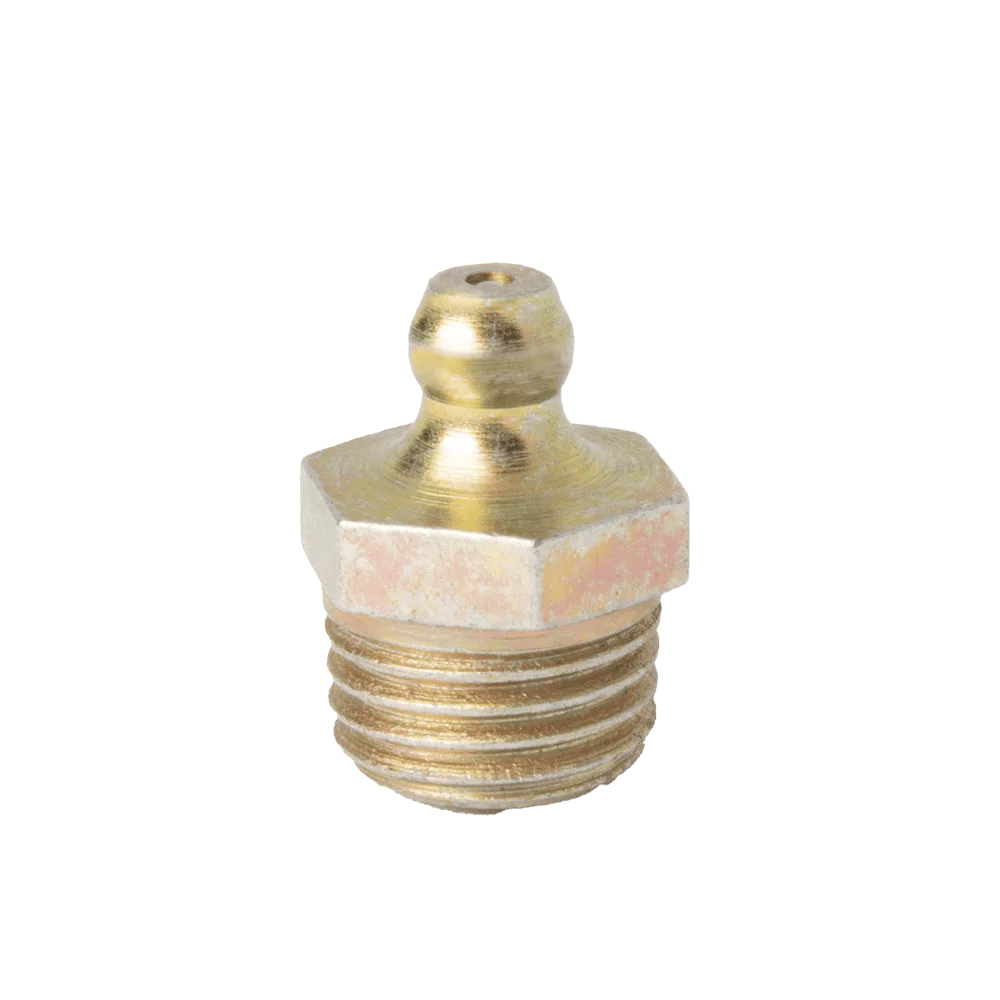

1/4″ x 18 PTF SAE Special Extra Short – Hardened Steel – Zinc Plated – Yellow – Straight Hydraulic Grease Fitting
201627
Description
1/4″ x 18 PTF Special Ex. Short. Straight Hydraulic Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Also Available in Zinc Yellow Chromate Finish. Code Number 221627. Limited Availability.
303 Grade Stainless Version. Code Number 808126
316 Grade Stainless Steel Version. Code Number 316P14
Additional information
| Weight | 14 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.81 |
| Dimension A (mm) | 20.5 |
| Dimension B (Inch) | 0.34 |
| Dimension B (mm) | 8.6 |
| Hardened | Yes |
| Hole | 1/4 American Pipe |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 14mm Hexagon |
| Thread | 1/4 x 18 PTF |
| Thread Type | American |
| Zinc Plating | Zinc Yellow Chromate |
