Product Code: 51250DF

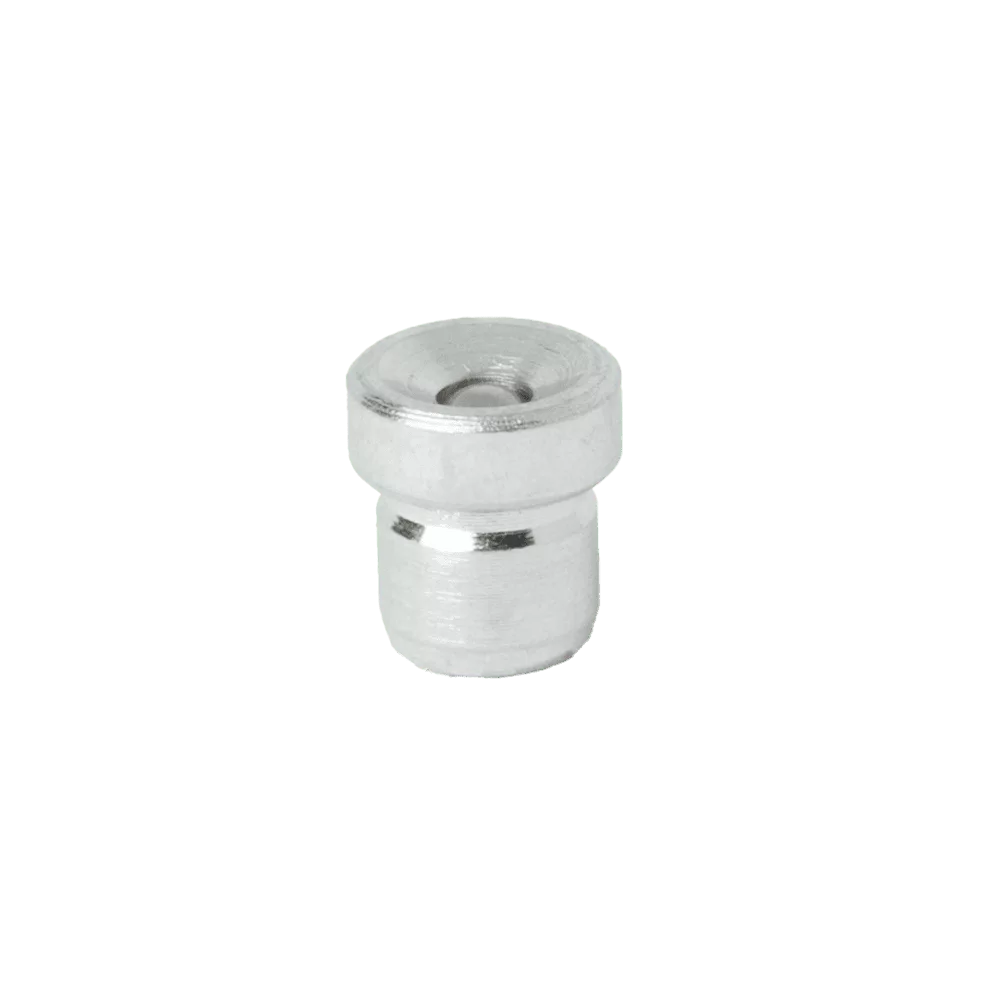

1/4″ Drive Fit Cup Type Grease Fitting
51250DF
Description
1/4″ Drive Fit Cup Type Grease Fitting. DIN 3405 Type D. (D1a)
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Low Pressure Applications.
Also known as Concave Type Grease Fittings
Additional information
| Angle | Straight |
|---|---|
| Ball Check | Yes |
| Dimension A (mm) | 9.5 |
| Dimension B (mm) | 7 |
| Hardened | Yes |
| Hole | 8mm nominal |
| International | DIN 3405 |
| Product Type | Cup Type |
| Material | Mild Steel |
| Spanner Wrench Size | 10mm Diameter |
| Thread | 8mm Drive Fit |
| Thread Type | Drive |
| Zinc Plating | Zinc Trivalent Passivate |
