Product Code: 608601

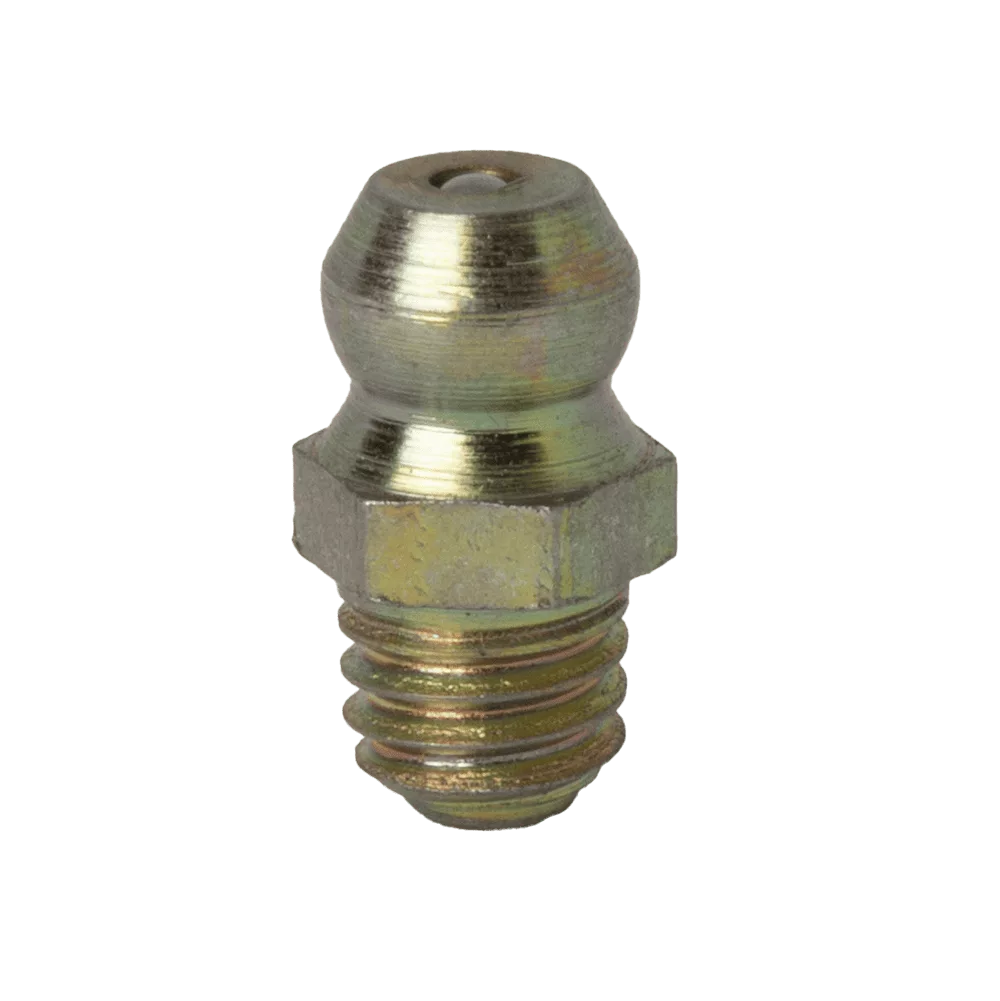

M6 x 1 Taper Straight Grease Fitting
608601
Description
M6 x 1 Taper Straight Hydraulic Grease Fitting. According to DIN 71412 Form A (H1)
Steel with Zinc Yellow Chromate Finish.
Also available with Zinc Trivalent Passivate Finish. Code Number 668601. Preferred.
303 Grade Stainless Steel Version. Code 808036.
316 Grade Stainless Steel Version. Code Number 316M6.
Additional information
| Weight | 12 kg |
|---|---|
| Angle | Straight |
| Ball Check | Yes |
| Dimension A (Inch) | 0.51 |
| Dimension A (mm) | 13 |
| Dimension B (Inch) | 0.19 |
| Dimension B (mm) | 5 |
| Hardened | Yes |
| Hole | M6 x 1 |
| International | DIN 71412 |
| Product Type | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner Wrench Size | 7mm Hexagon |
| Thread | M6 x 1 Taper |
| Thread Type | Metric |
| Zinc Plating | Zinc Yellow Chromate |
