Product Code: 811572090

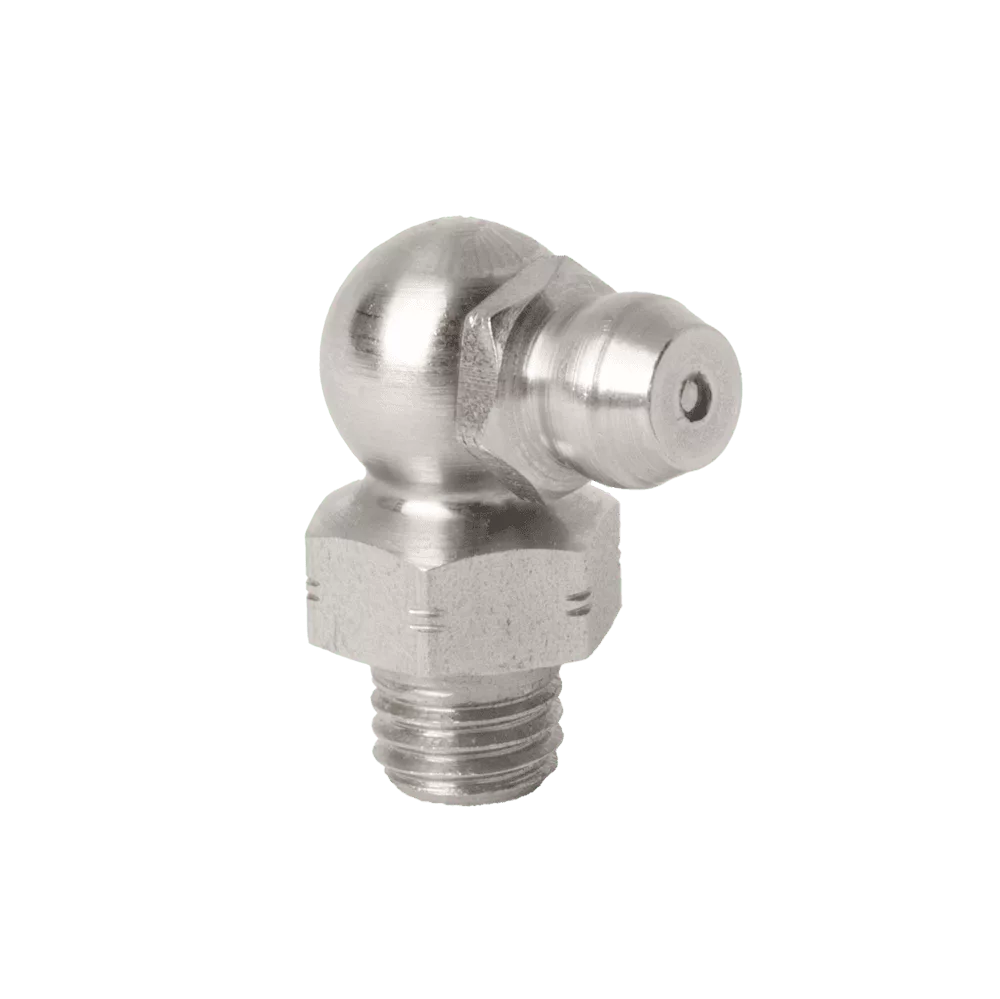

1/4″ x 28 SAE-LT 90° Grease Fitting Stainless Steel AS15720-3
811572090
Description
1/4″ x 28 SAE-LT 90° Hydraulic Grease Fitting.
Reference SAE AS 15720-3
303 Grade (A2) Stainless Steel Body with 302 Grade Stainless Steel Spring and 440C Grade Stainless Steel Ball.
Material Certification Available.
Additional information
| Weight | 13 kg |
|---|---|
| Angle | 90 |
| Ball Check | Yes |
| Dimension A (Inch) | 0.78 |
| Dimension A (mm) | 19.8 |
| Dimension B (Inch) | 0.19 |
| Dimension B (mm) | 4.8 |
| Dimension C (Inch) | 0.49 |
| Dimension C (mm) | 12.5 |
| Hardened | No |
| Hole | 1/8 American Pipe |
| International | AS 15005-1 |
| Product Type | Hydraulic Grease Nipple |
| Material | 303 Stainless |
| Spanner Wrench Size | 7/16" Hexagon |
| Thread | 1/4 x28 SAE-LT |
| Thread Type | American |
| Zinc Plating | No |
