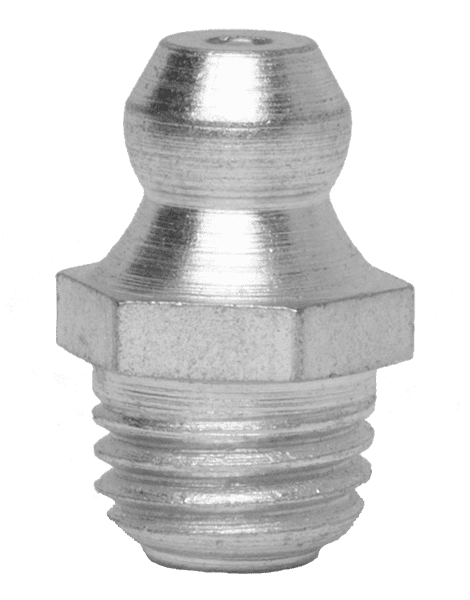

Metric Thread
Grease Fittings
Metric threaded grease fittings can be either parallel or 1:16 tapered. The 1:16 tapered design is preferred as it seals in a mating parallel hole without the need for sealant.
These threads are defined by the 2 numbers i.e. M8 x 1. This would define an 8mm diameter thread with a 1mm pitch. The 3 common threads for grease fittings are M6 x 1, M8 x 1 and M10 x 1 which are all specified in DIN 71412.
Metric - Standard Fittings
Below are our most common Metric Thread fittings. To view the product please click the product code.
Kingfisher Code | Kingfisher Code | Kingfisher Code | Description |
White Trivalent. RoHS REACH Compliant | 303 (A2) Stainless Steel | 316 (A4) Stainless Steel | |

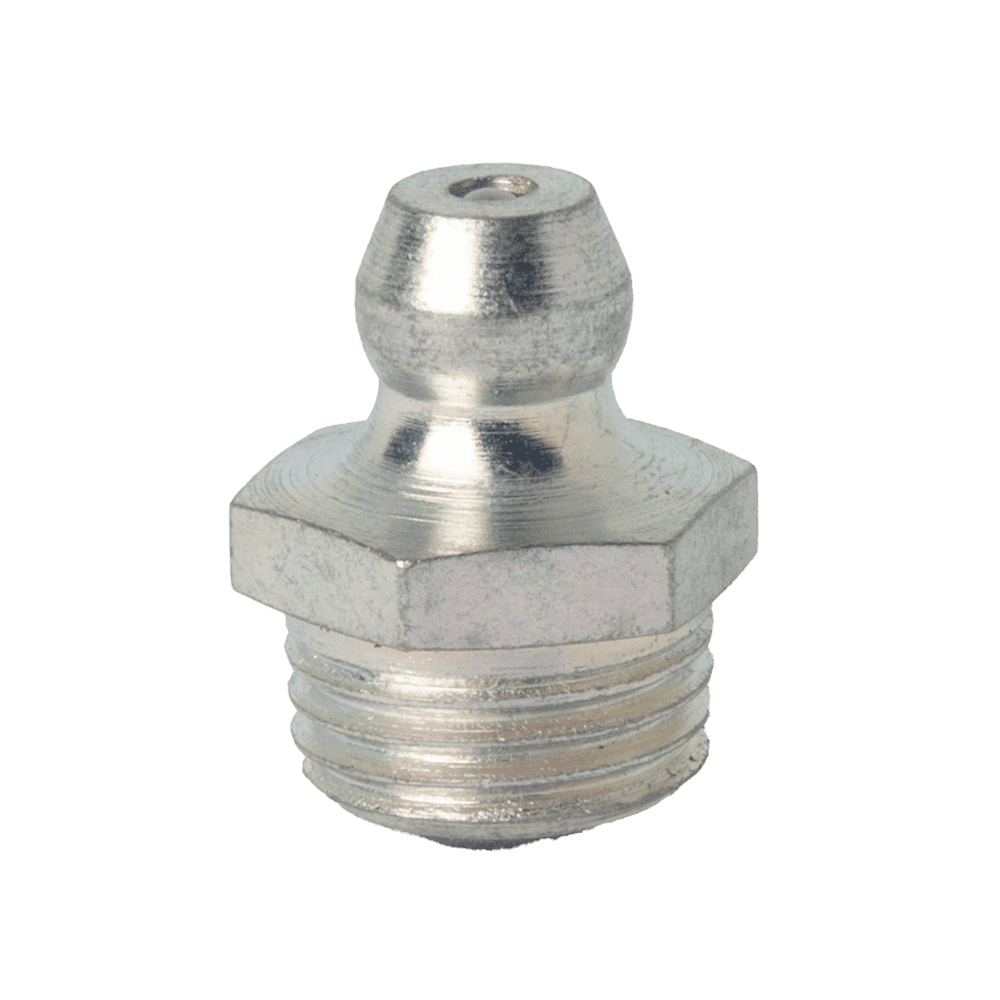

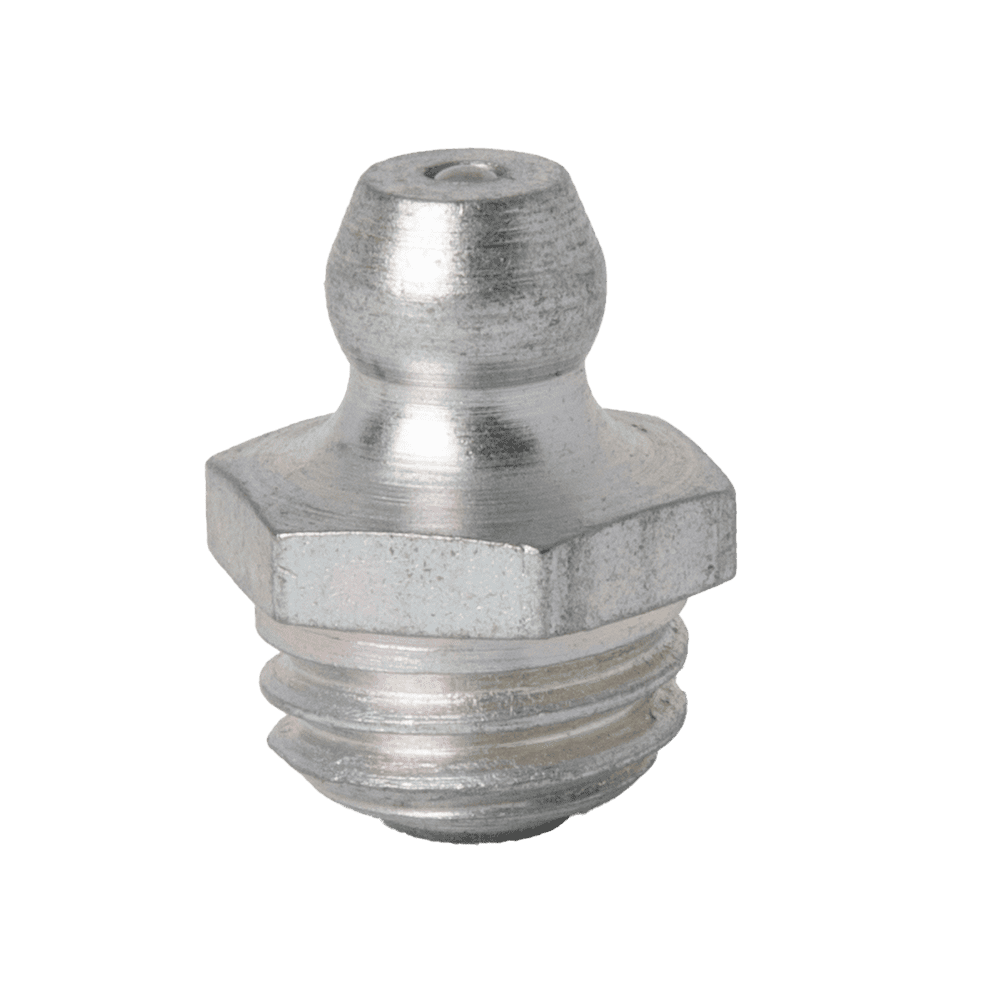

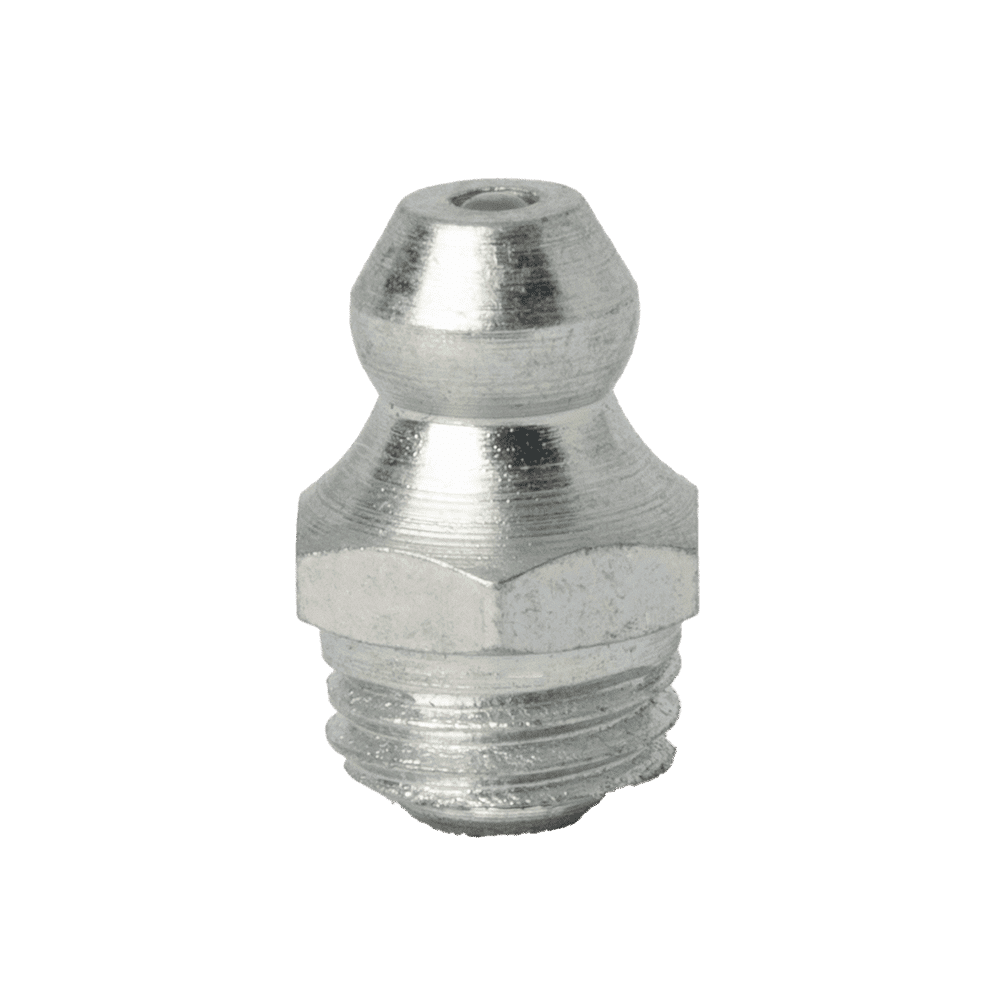

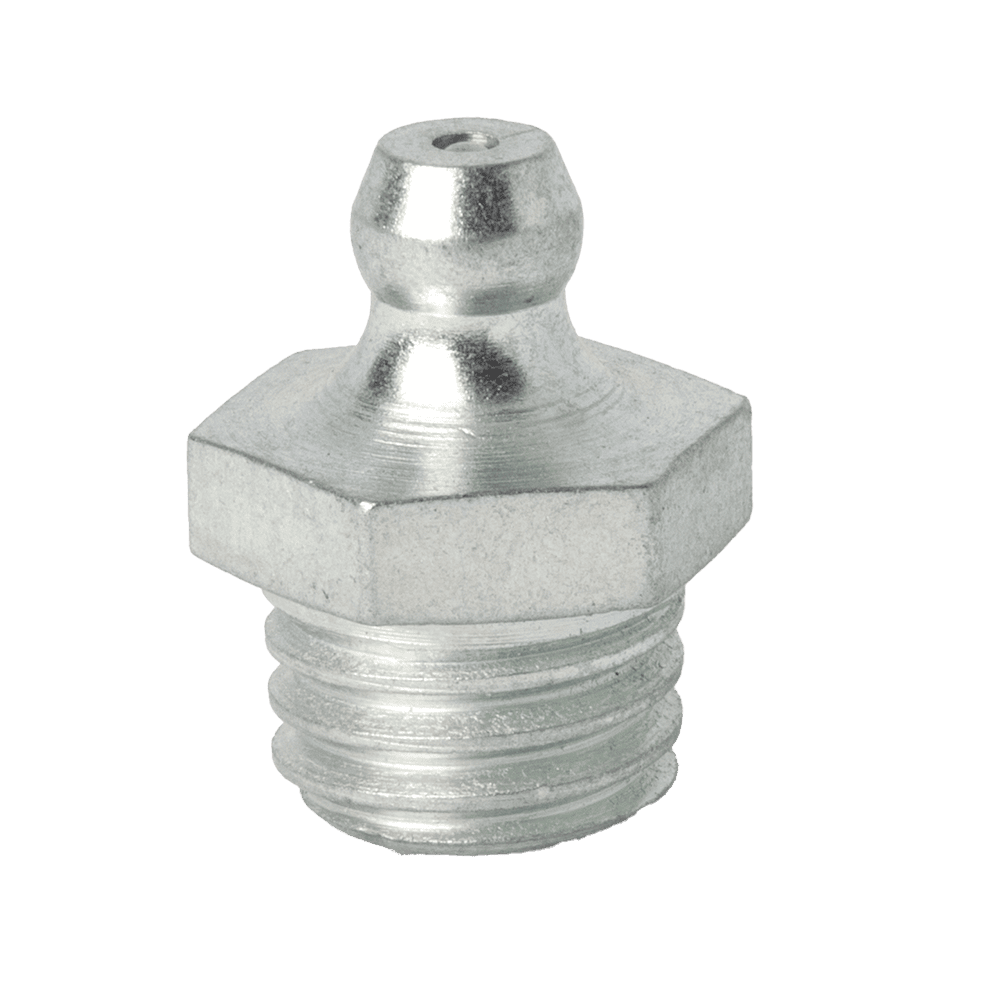

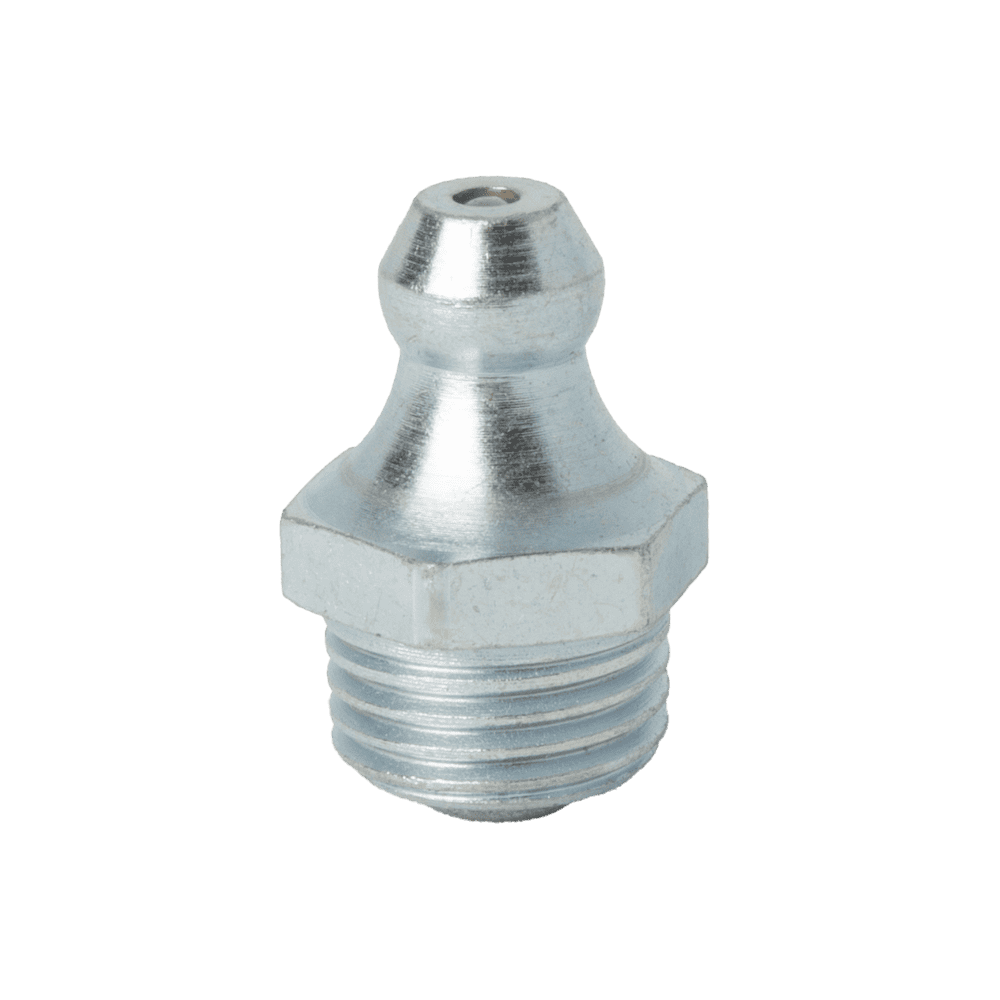

M6 x 1 Straight | |||

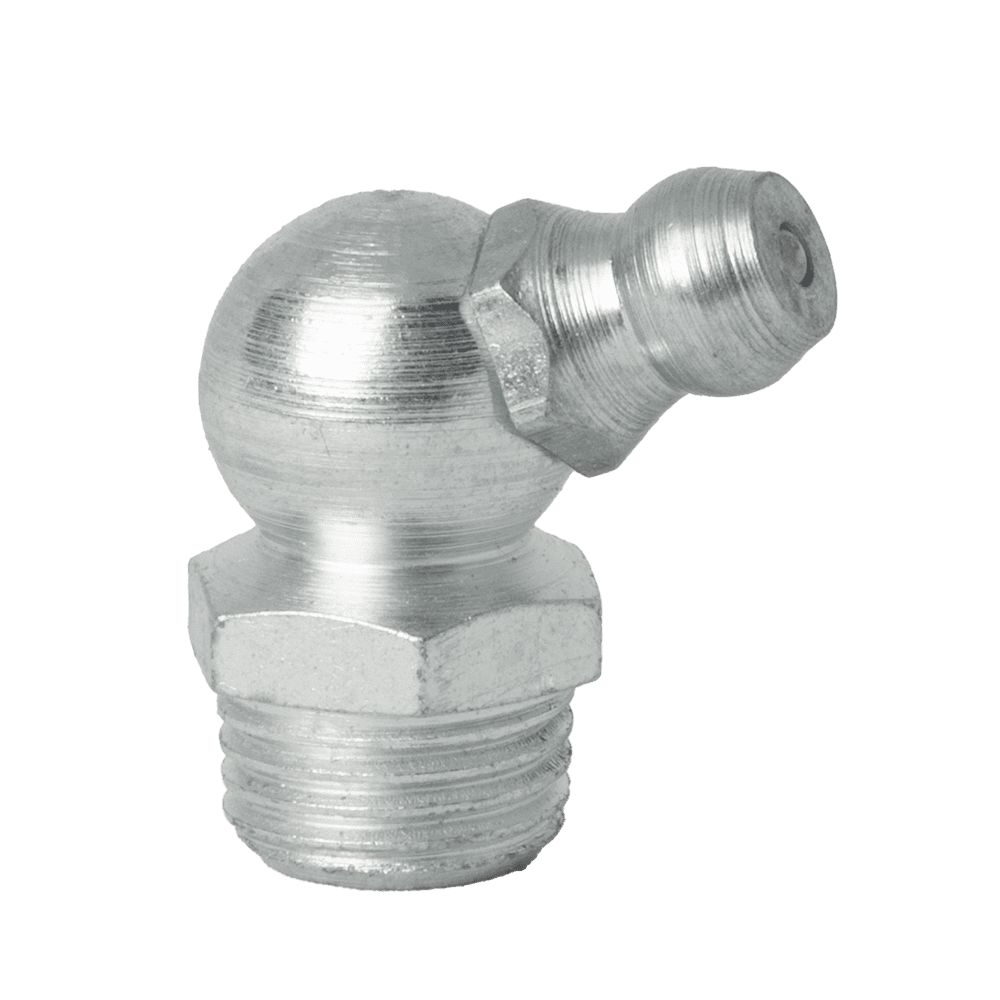

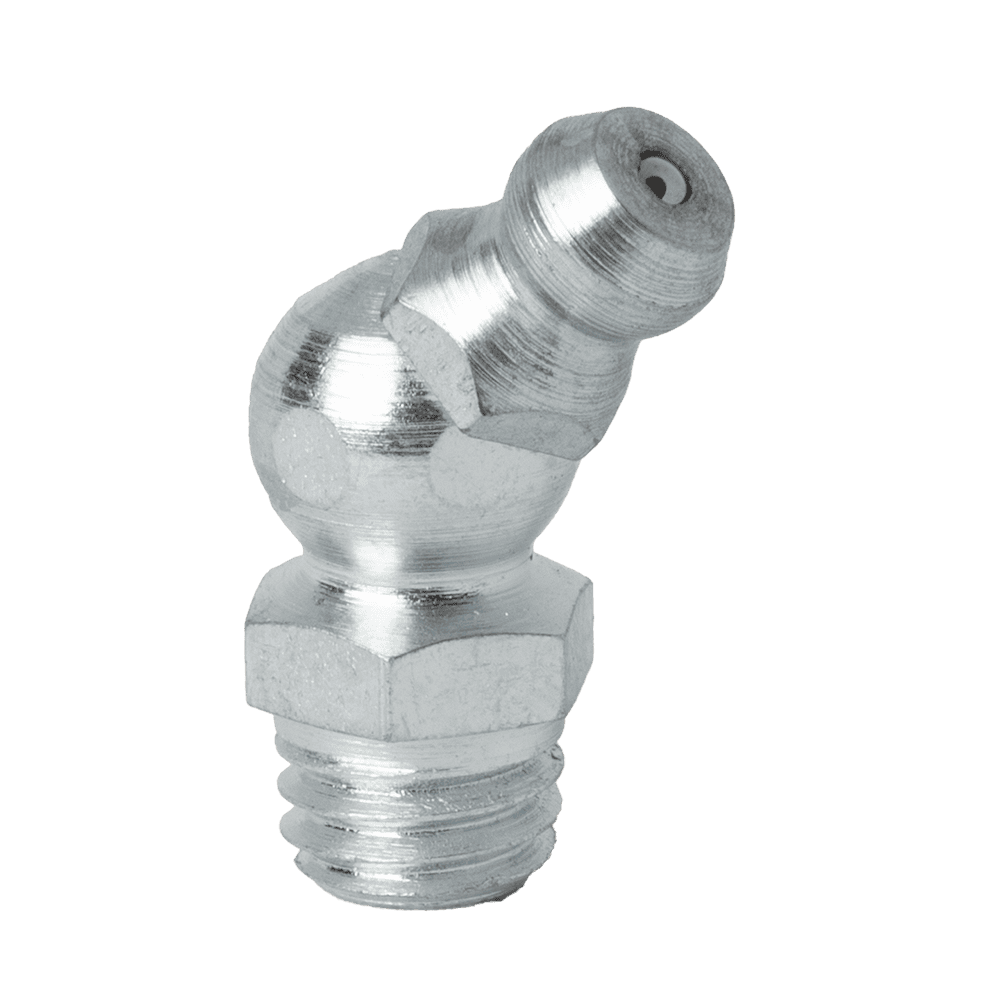

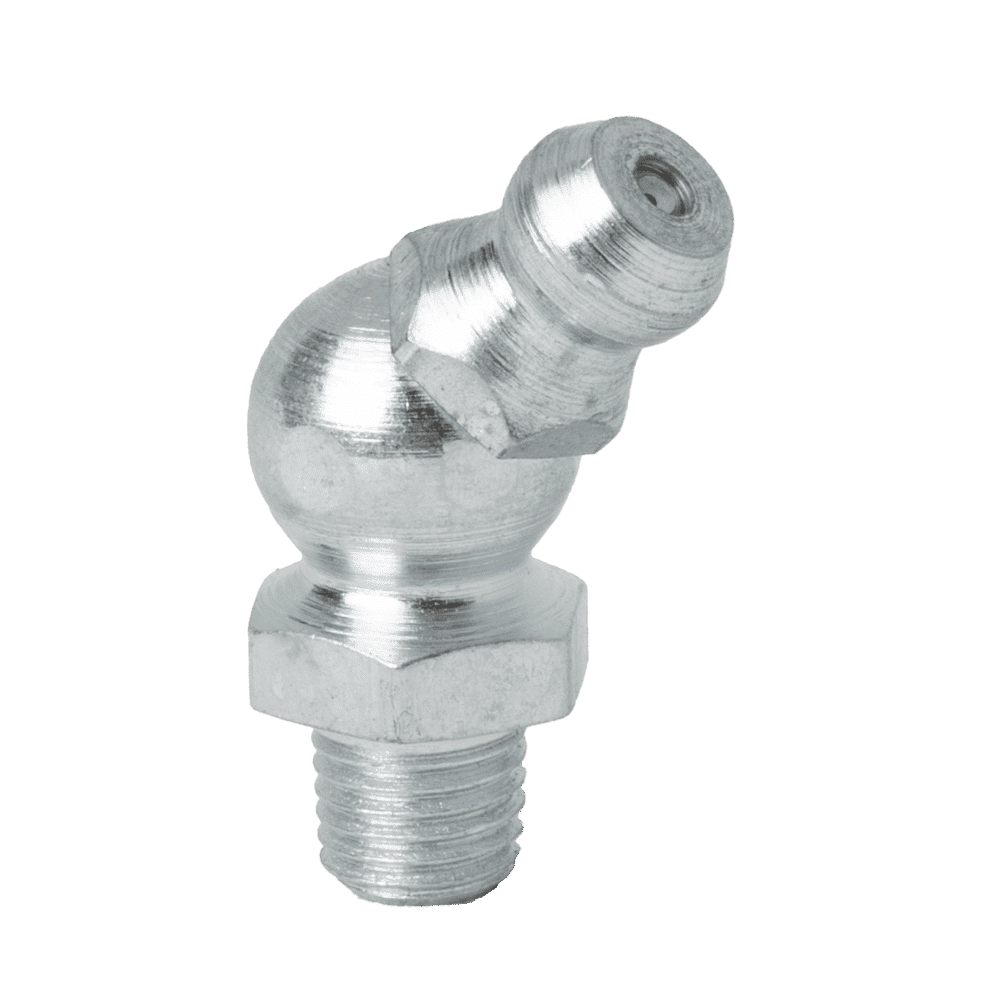

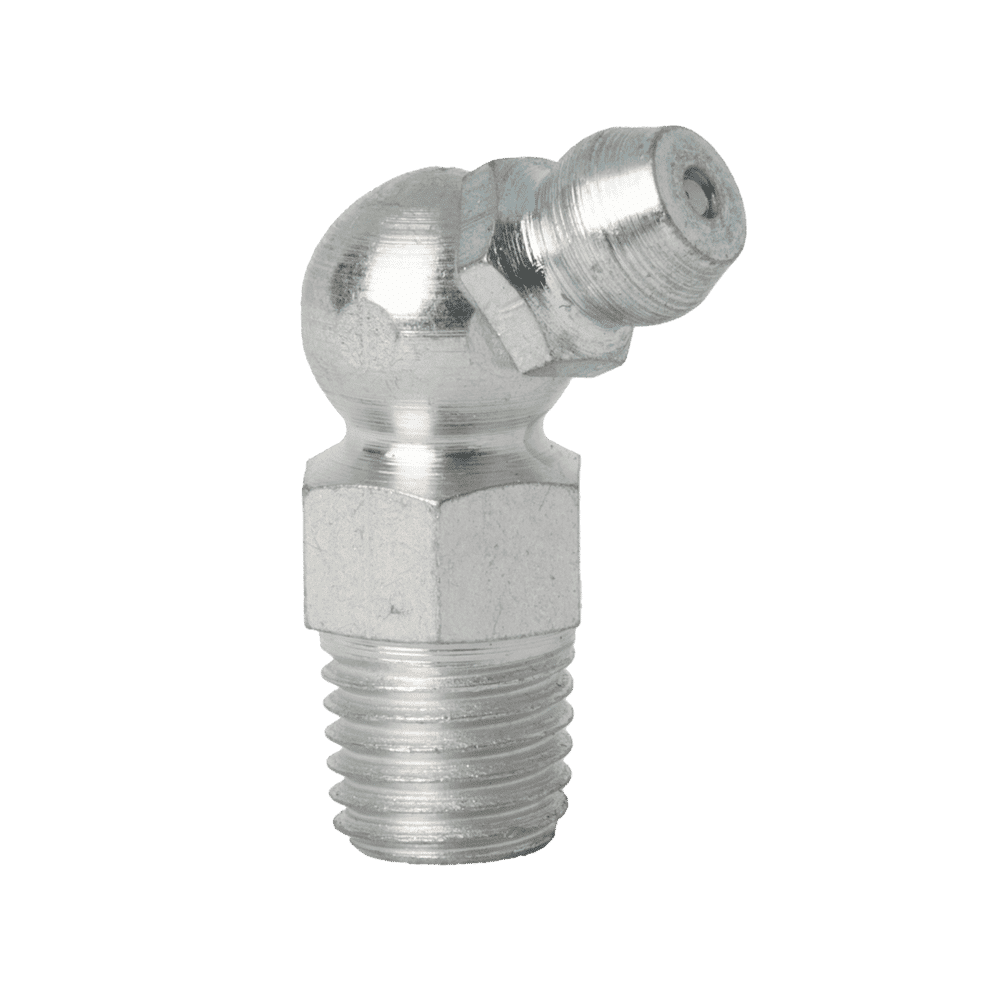

M6 x 1 45° | |||

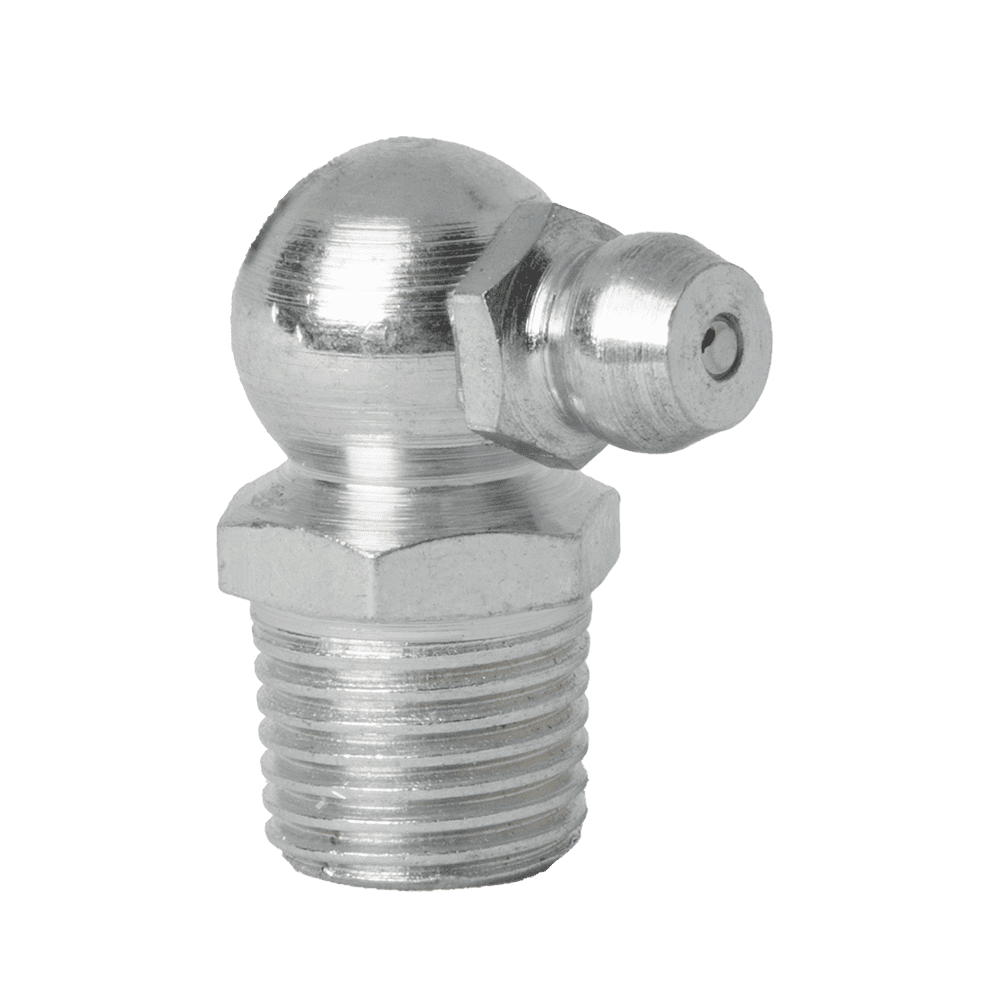

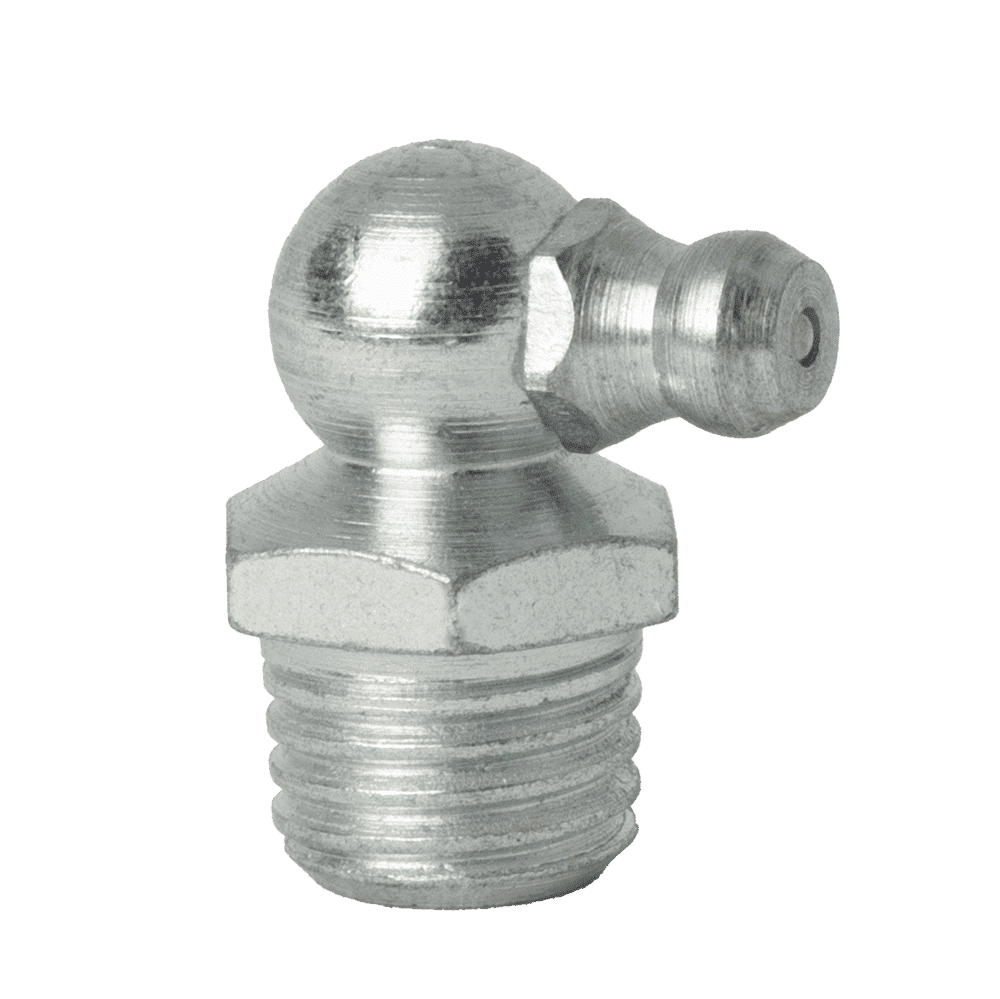

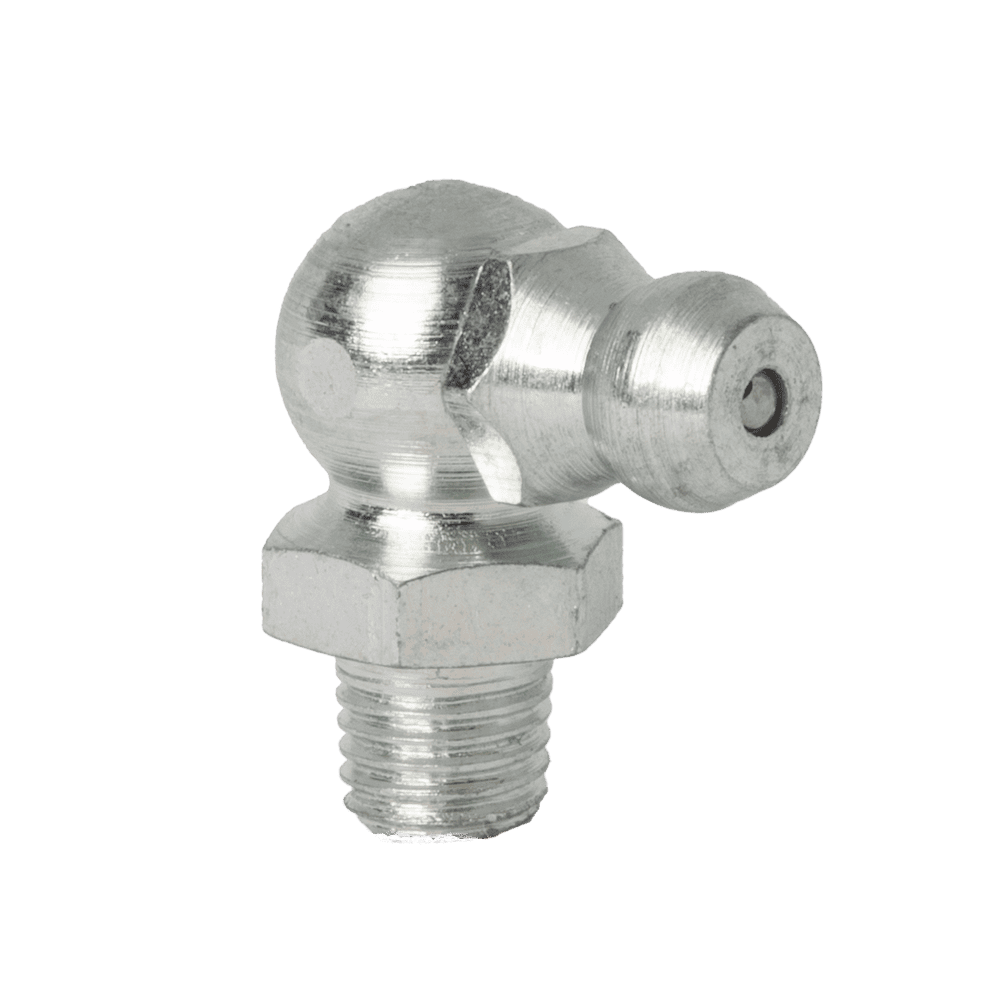

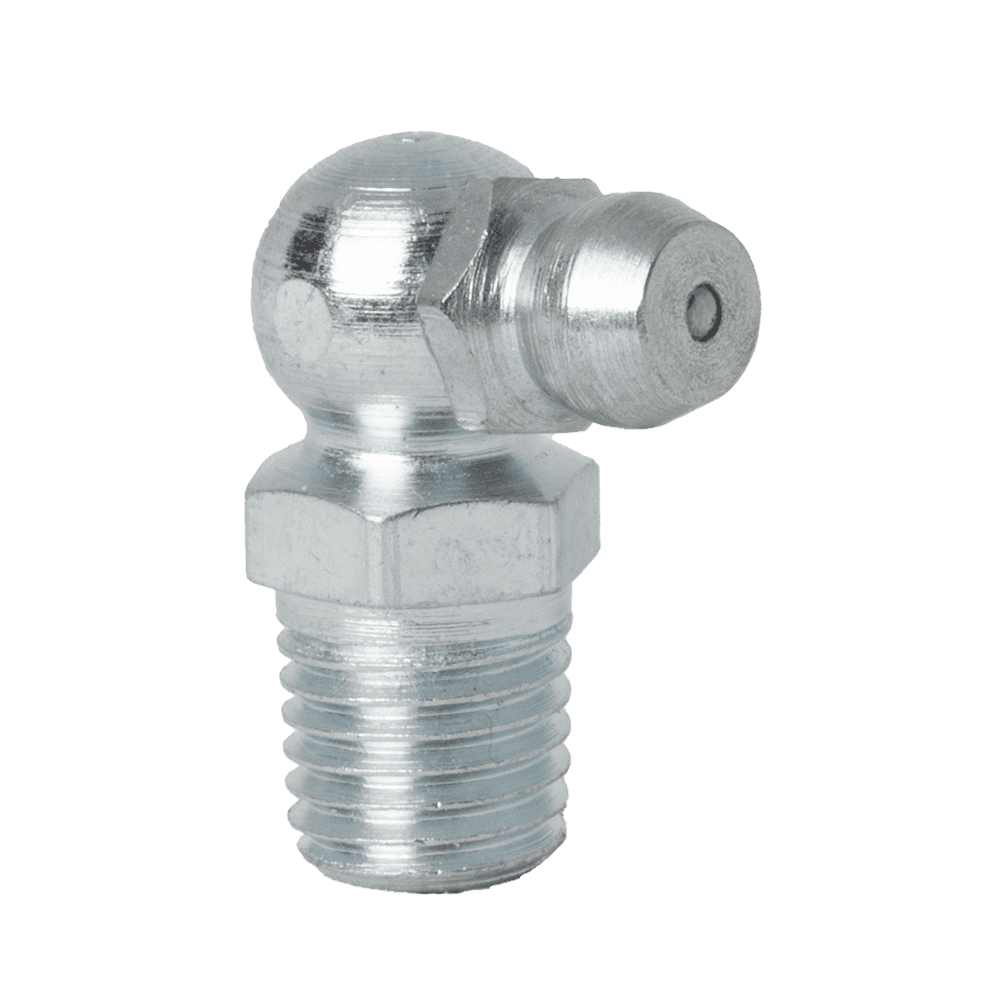

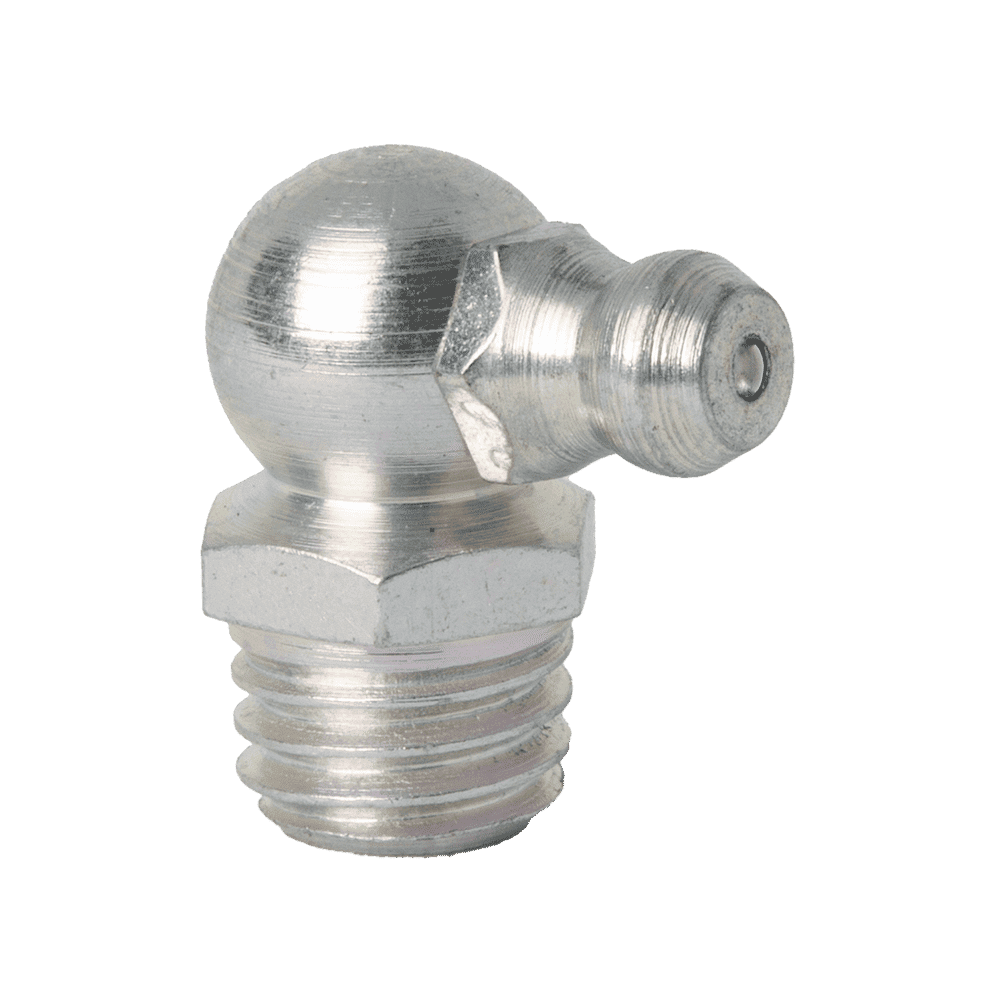

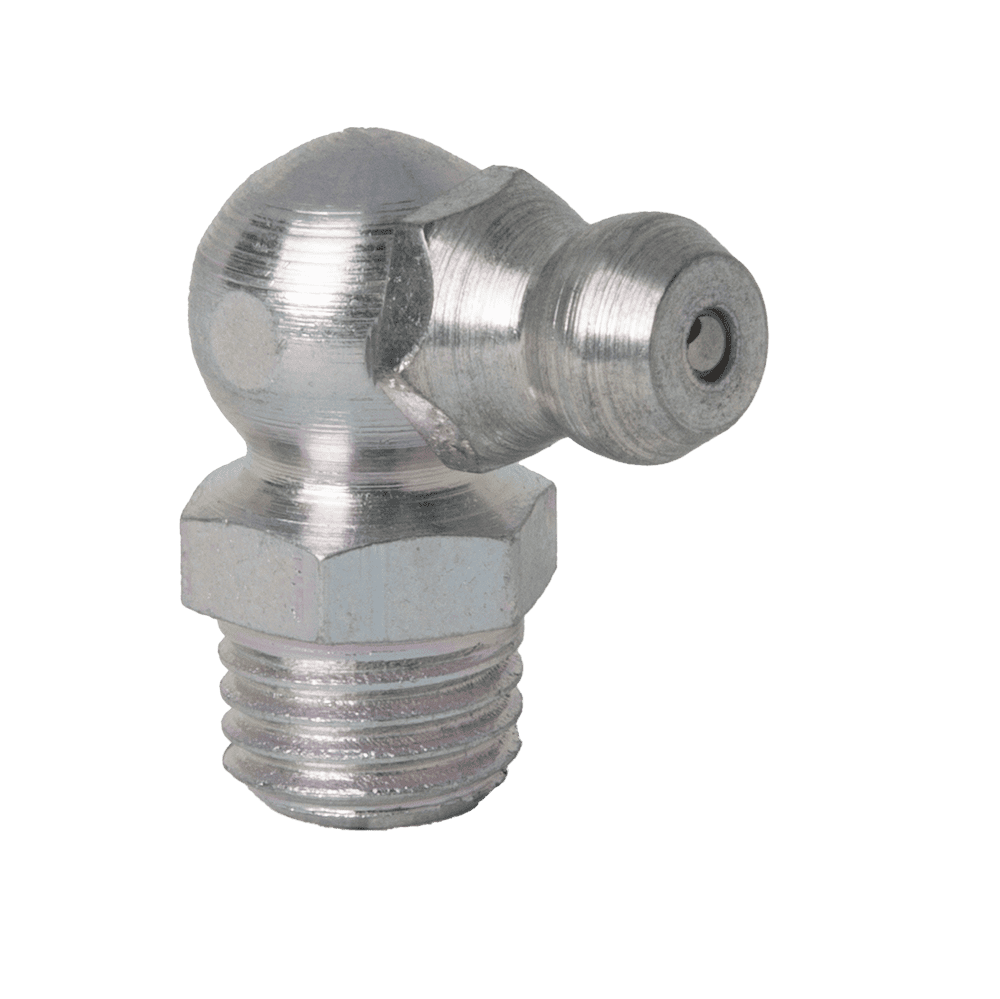

M6 x 1 90° | |||
M6 x 1 Self Fom Straight | |||

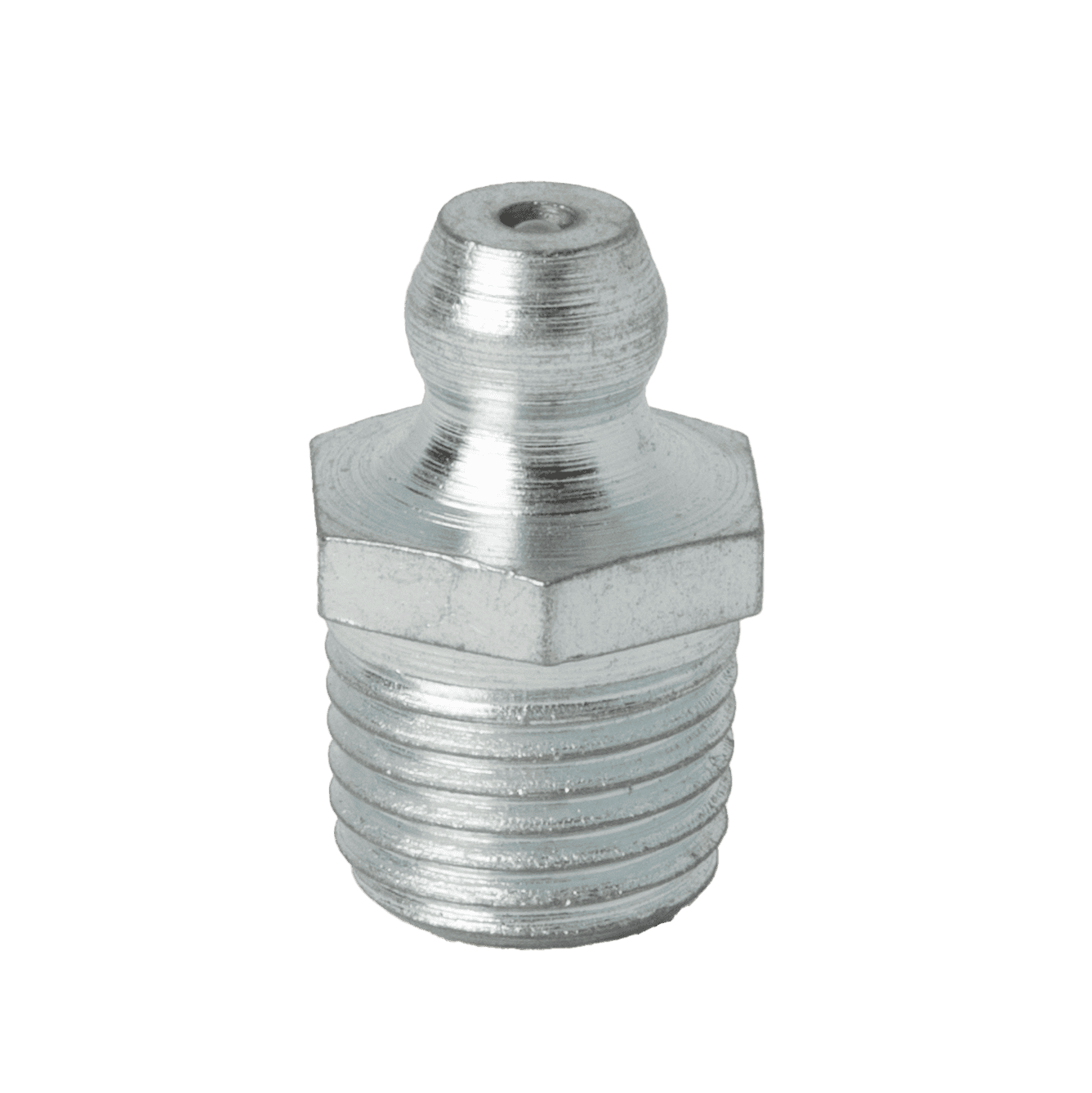

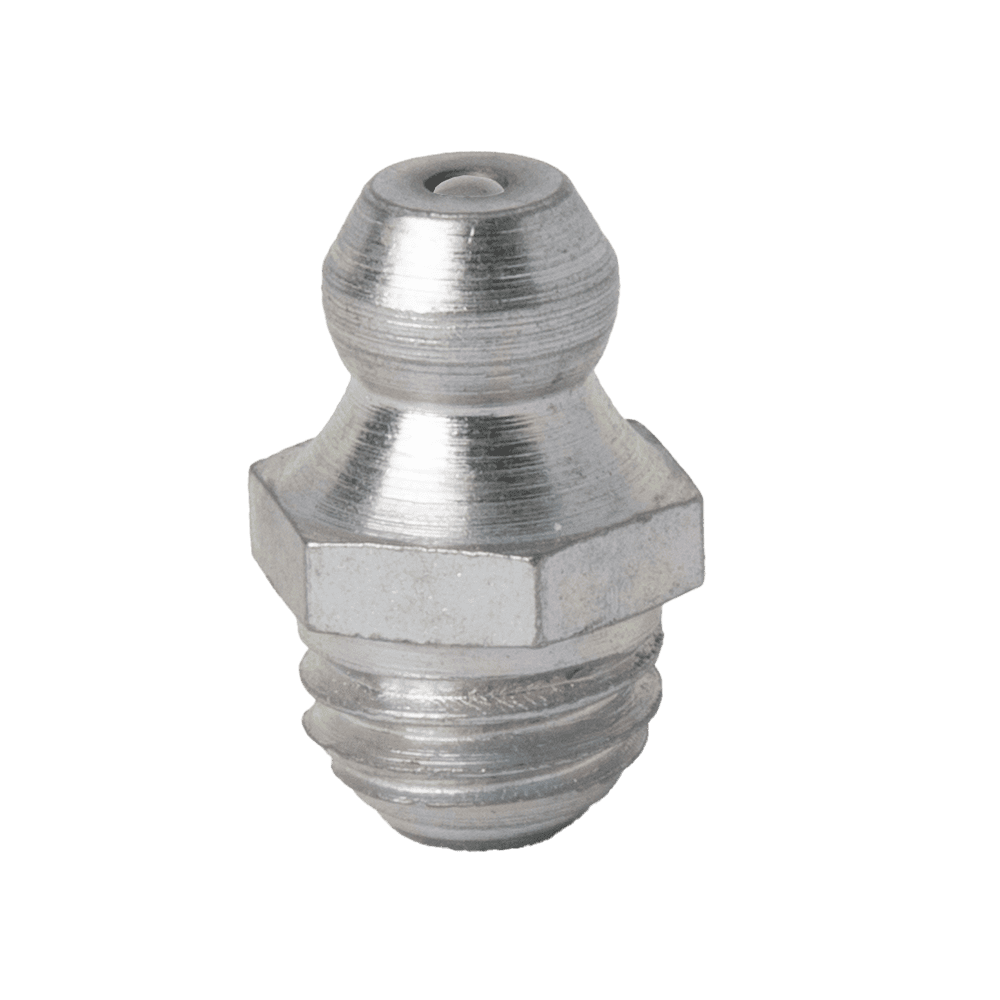

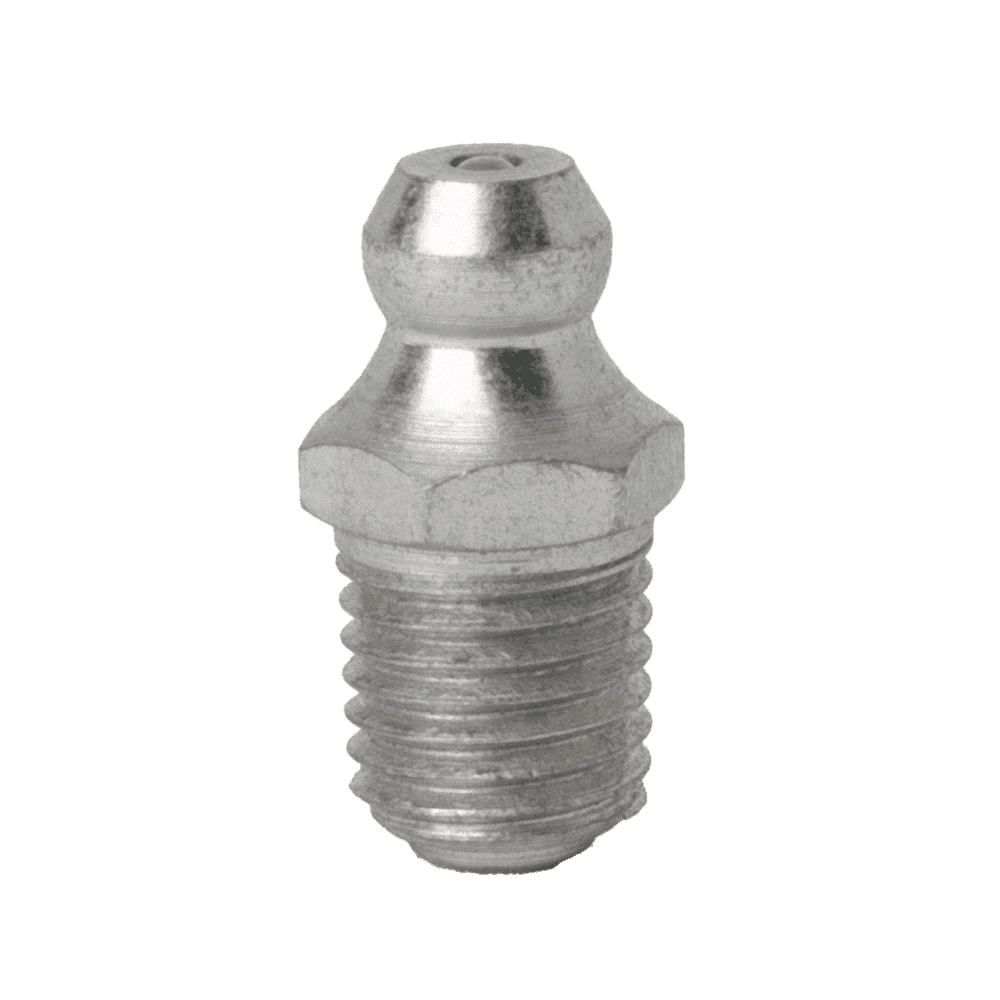

M8 x 1 Straight | |||

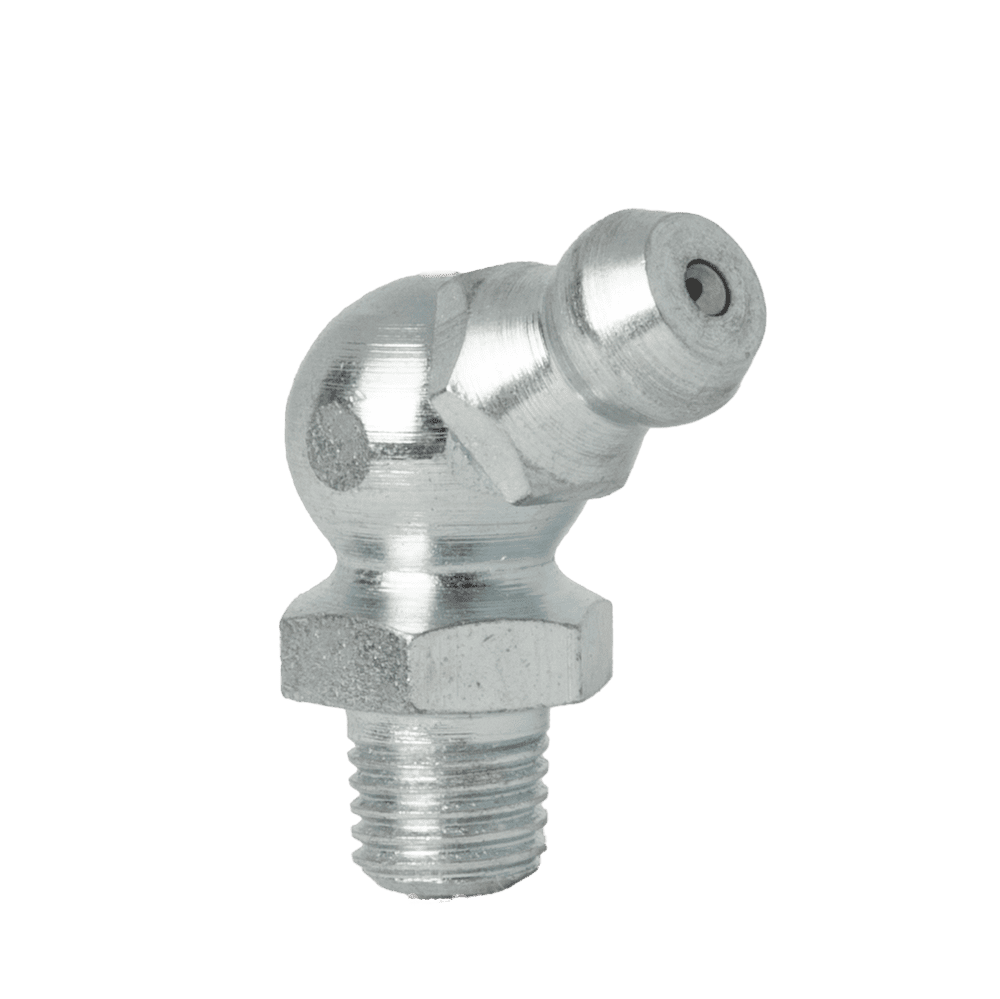

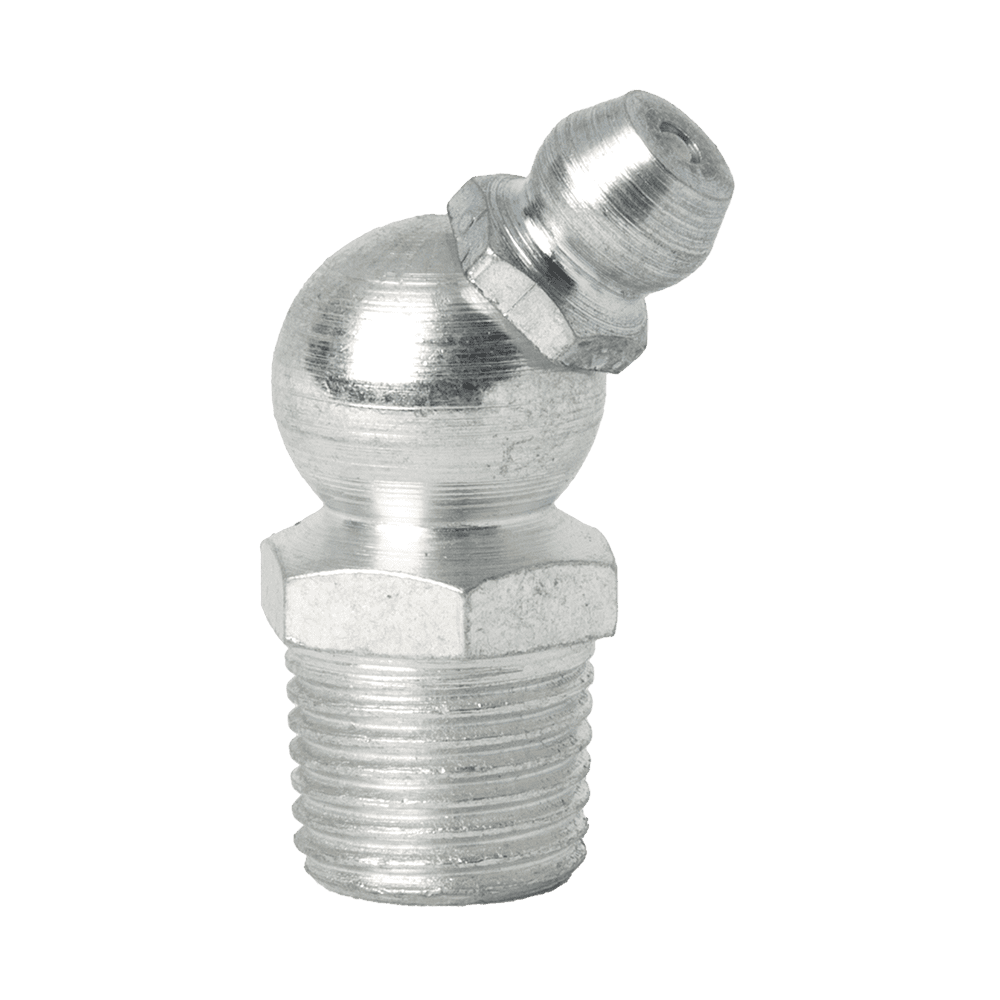

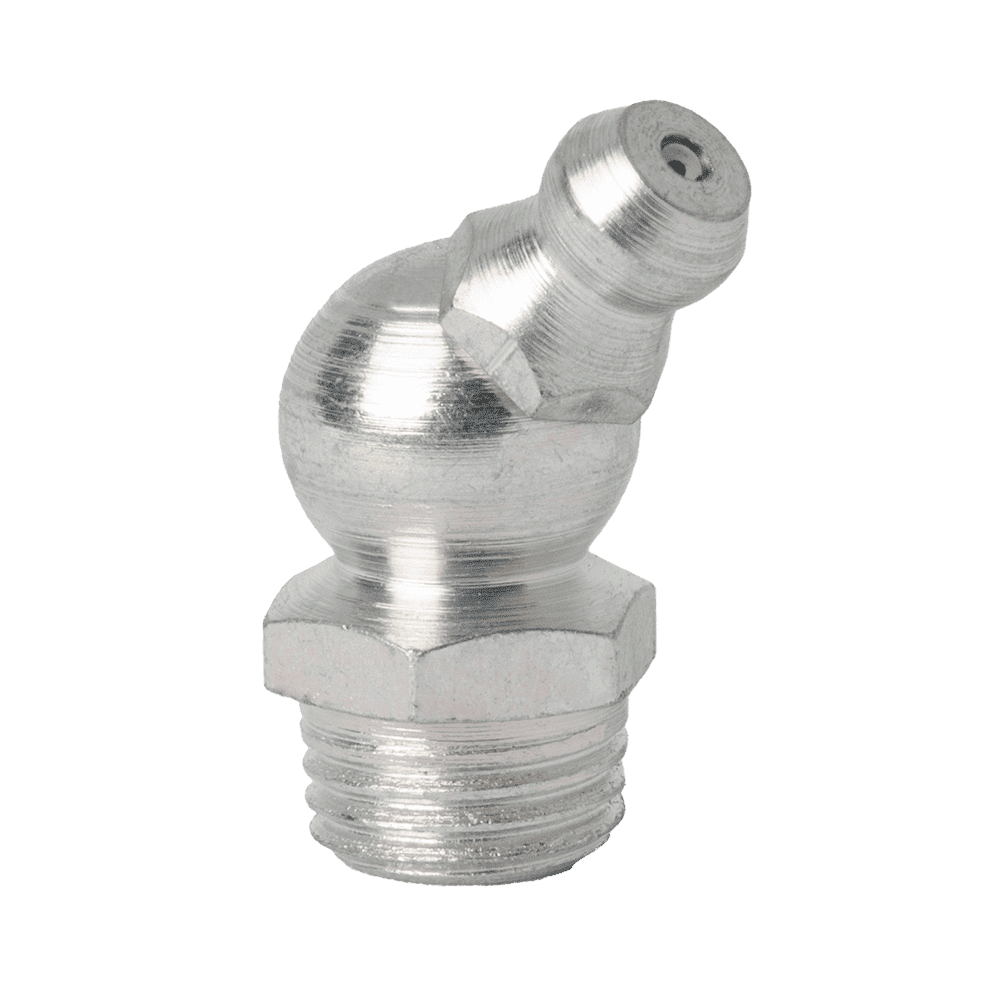

M8 x 1 45° | |||

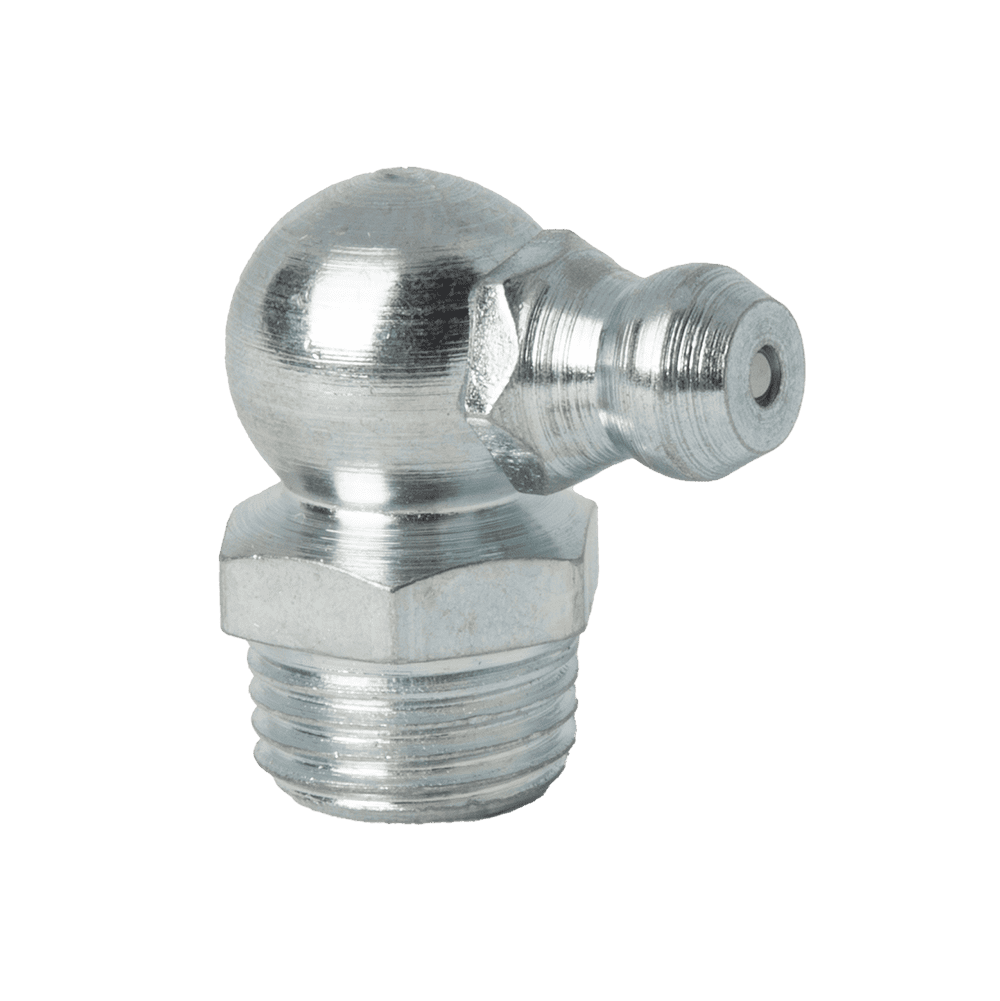

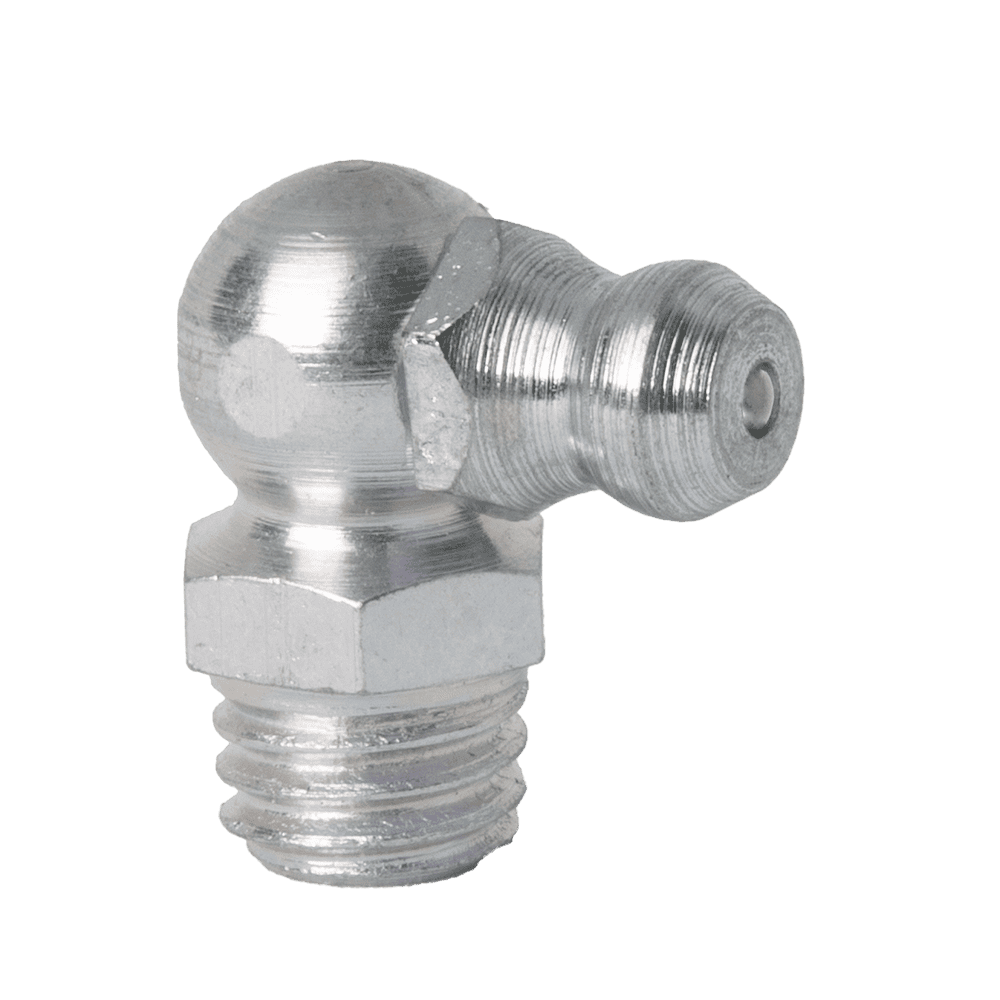

M8 x 1 90° | |||
N/A | M8 x 1 Self Form Straight | ||

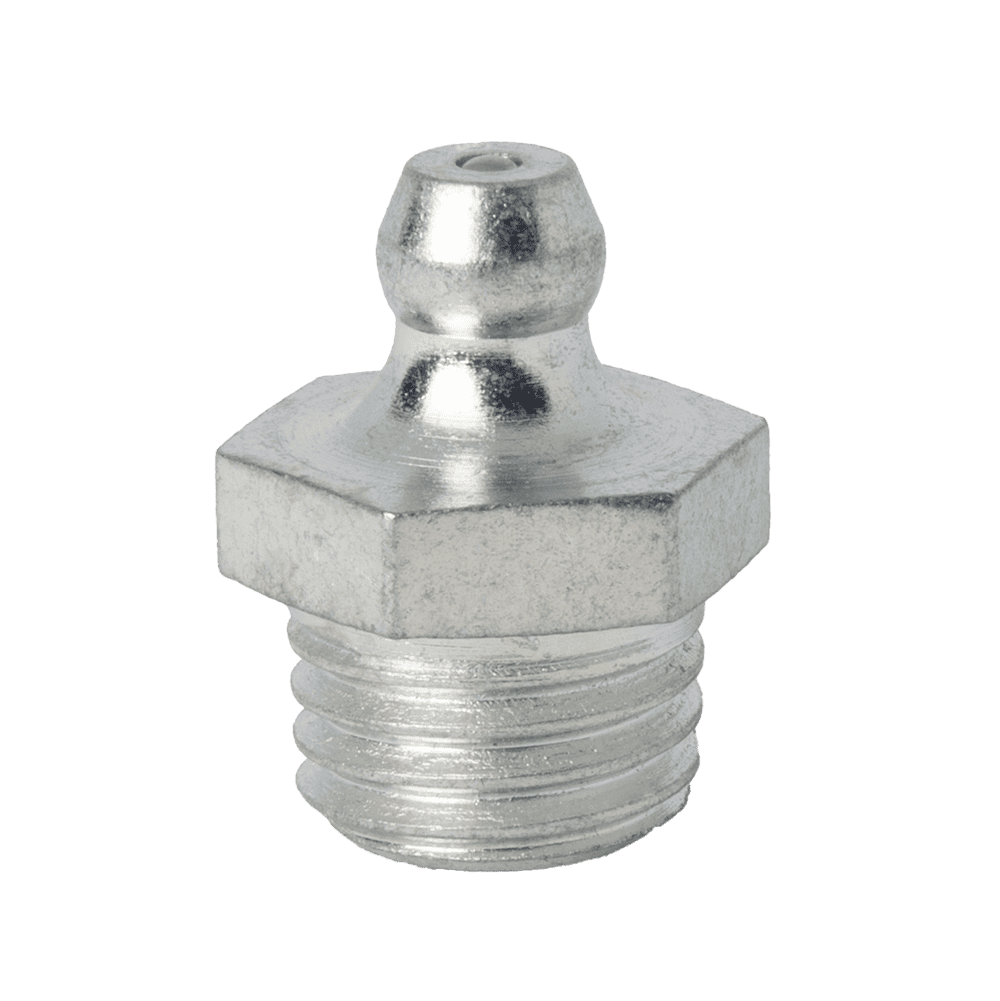

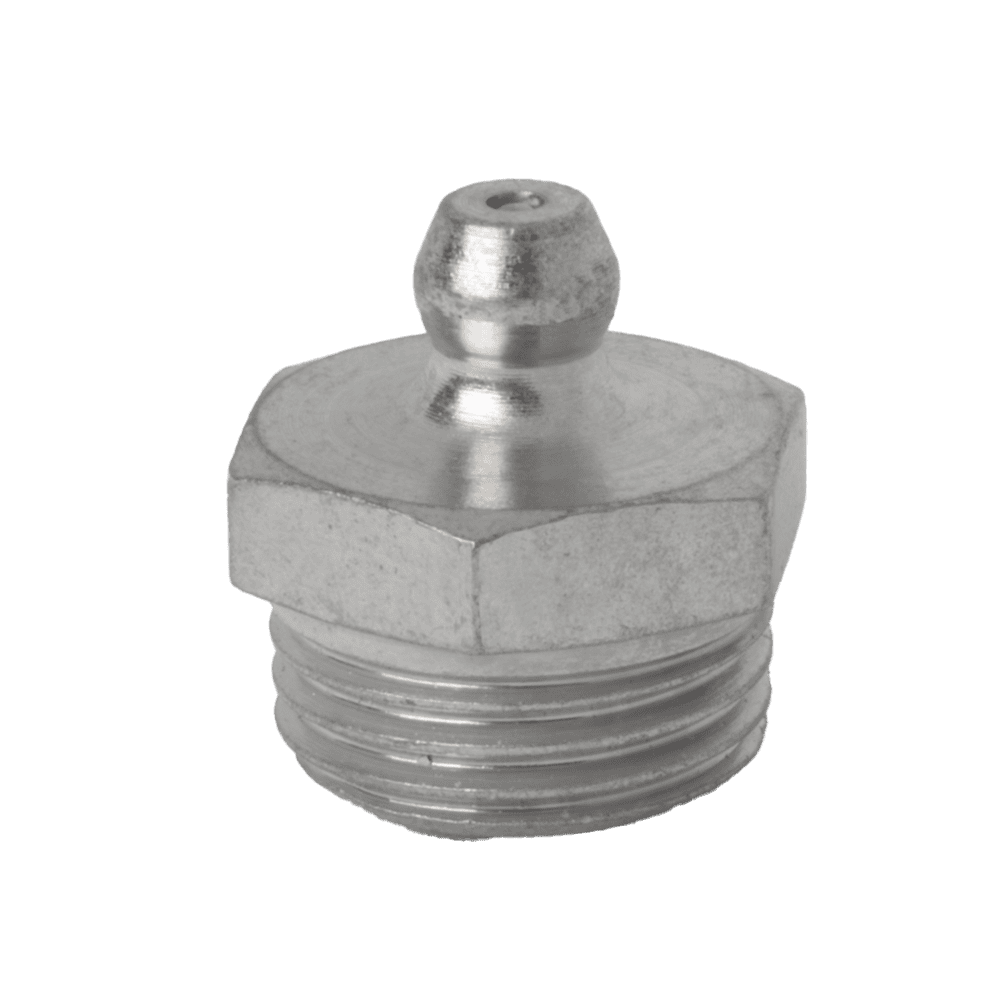

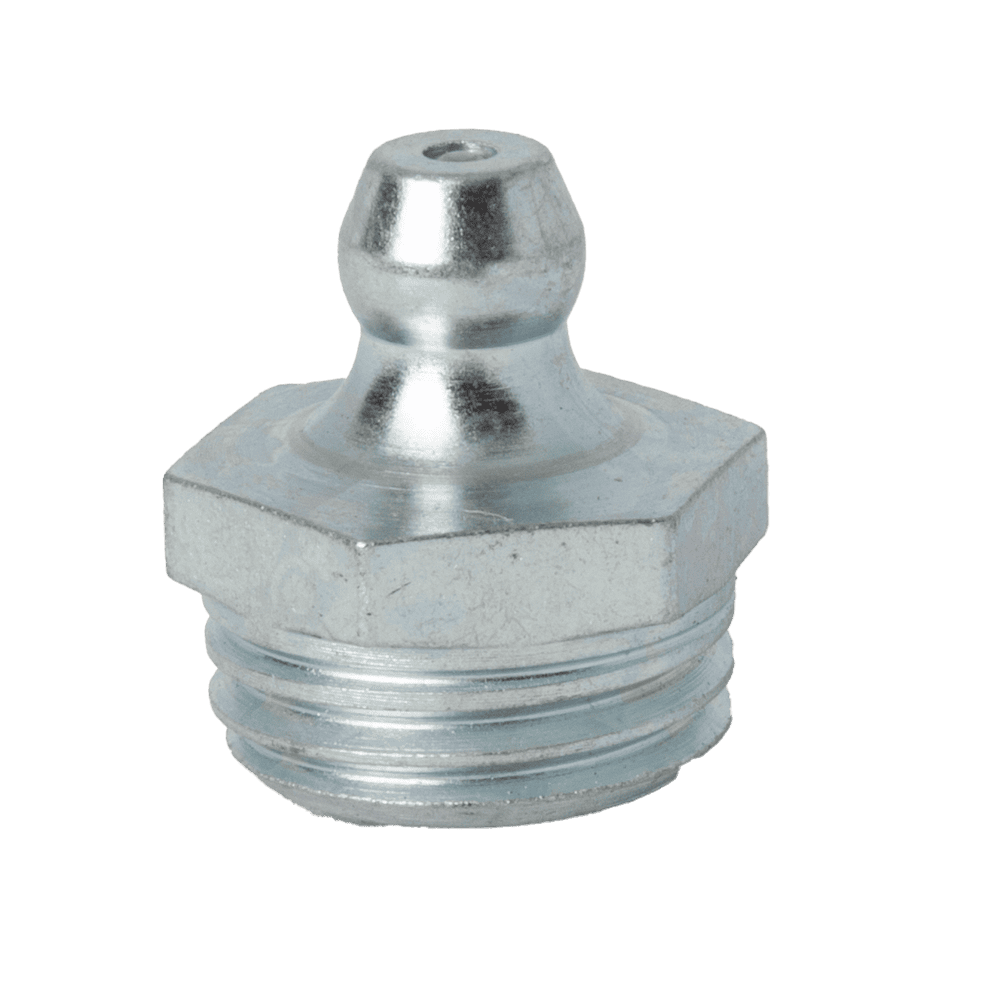

M10 x 1 Straight | |||

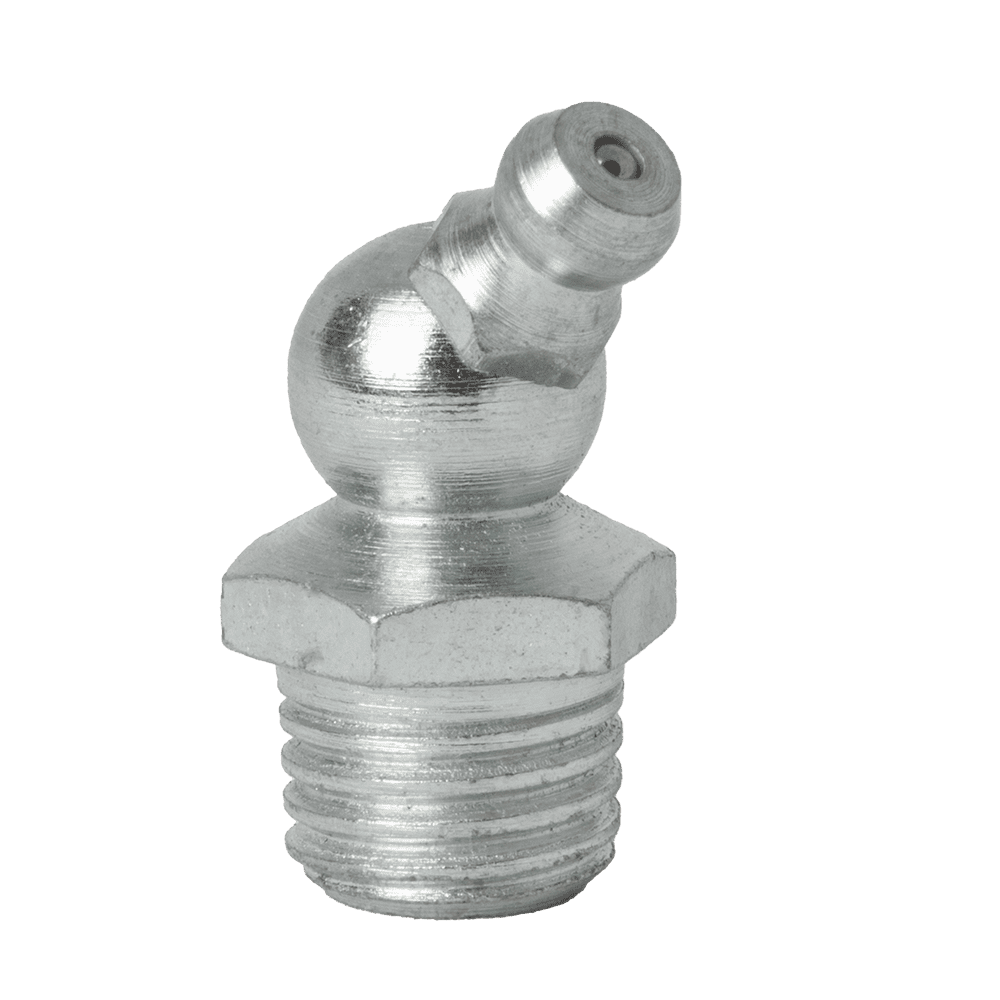

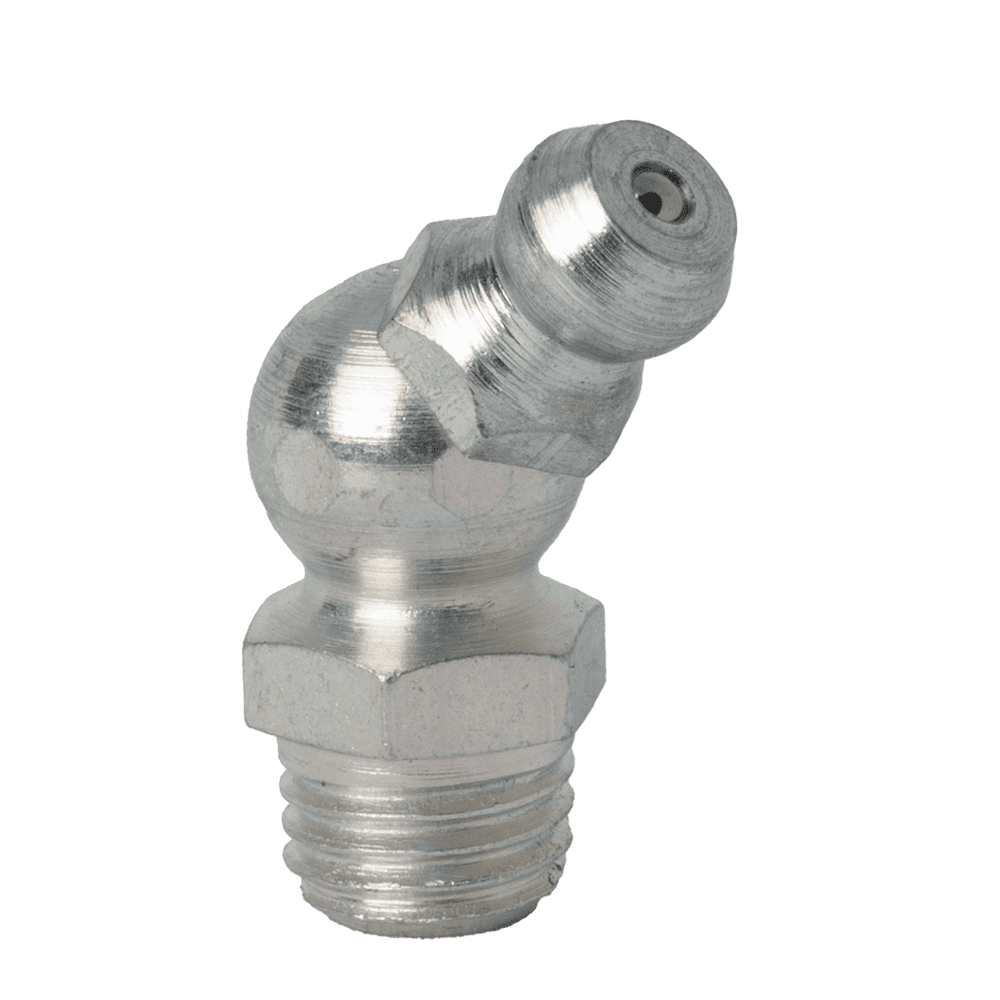

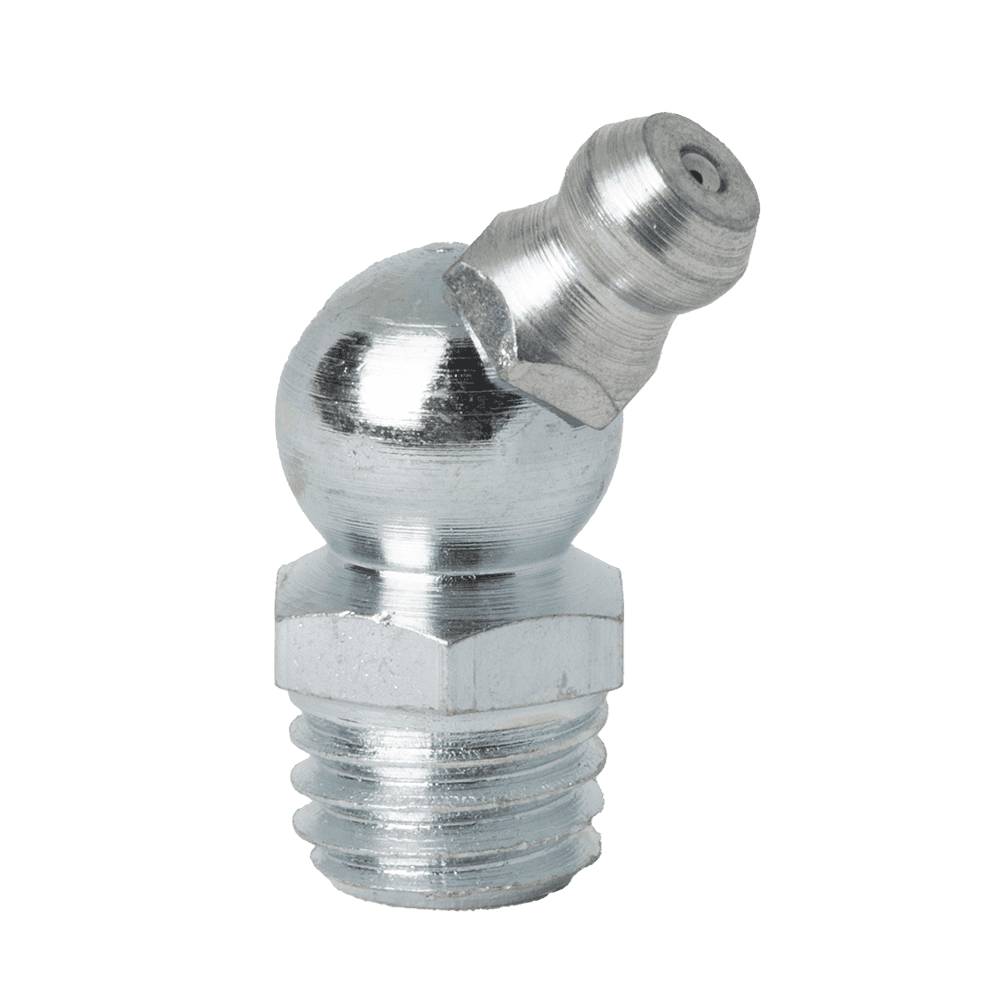

M10 x 1 45° | |||
M10 x 1 90° | |||
M10 x 1 Self Form Straight |
Some fittings are also available in 303 stainless & 316 stainless.
Please note: White Trivalent is preferred for RoHS and REACH compliance.
