Product Code: 205578

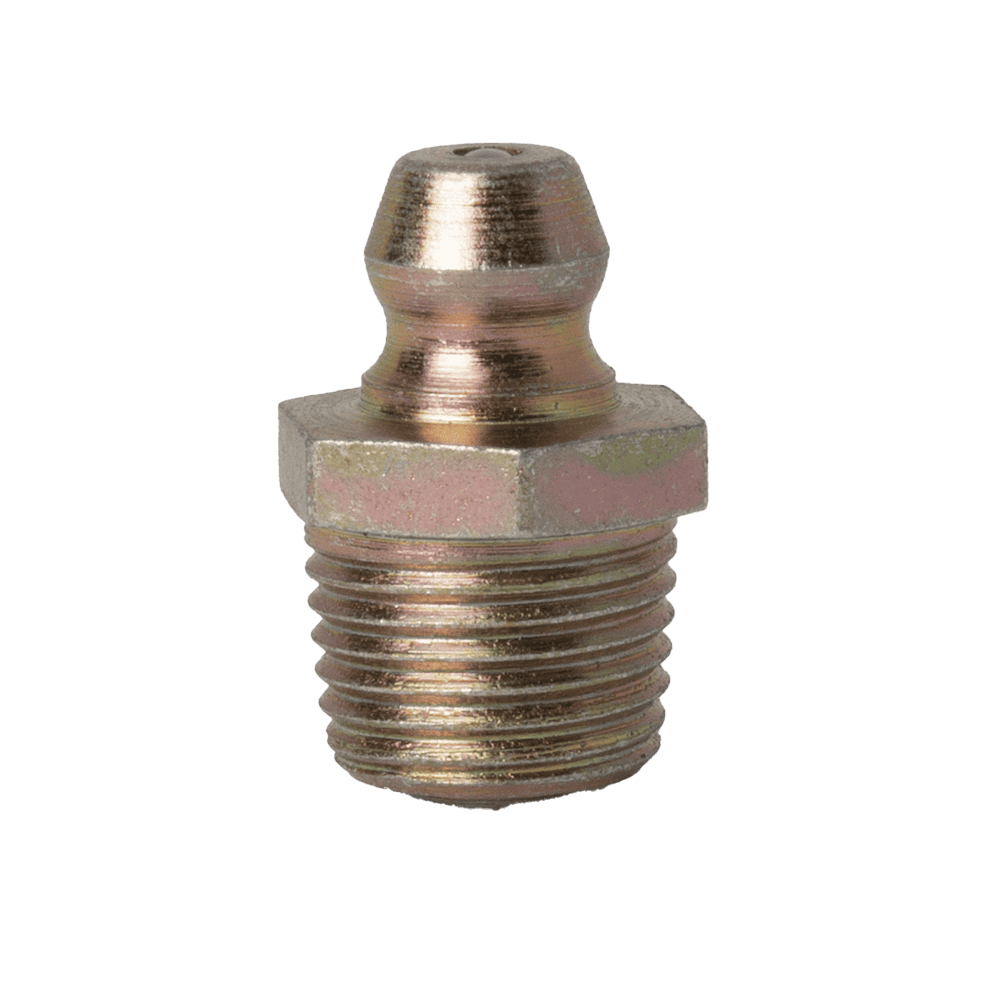

1/8 x 27 Self Forming Straight Grease Fitting
205578
描述
Self-forming threads can be screwed or driven into an untapped hole. The size of the hole must be determined by the user.
Avoid chamfering as a sharp edge to the hole helps the thread bite
This head design was manufactured specifically for use in automated assembly processes used by high volume manufacturers.
Dimensions & Attributes
| 重量 | 14 公斤 |
|---|---|
| Angle | 直的 |
| Ball Check | 是的 |
| Dimension A (Inch) | 0.7 |
| Dimension A (mm) | 17.8 |
| Dimension B (Inch) | 0.32 |
| Dimension B (mm) | 8.1 |
| Hardened | 是的 |
| Hole | 参考 SAE J534 |
| International | Thread to SAE J534 |
| 产品类型 | 液压油嘴 |
| 材料 | 低碳钢 |
| Spanner Wrench Size | 7/16英寸六角 |
| Thread | 1/8 x 27 特殊锥度 |
| 螺纹类型 | 自成型 |
| Zinc Plating | Zinc Yellow Chromate |
