Product Code: 151607
1/8″ x 27 PTF 长直油脂嘴 AS15003-2P
151607
描述
1/8″ x 27 PTF Special Short Straight Hydraulic Grease Fitting 1.25″ Long
Hardened Steel Body. Stress Relieved Steel Spring and Steel Ball.
Manufactured according to SAE AS 15003-2P
Material Reference AS35411
Other reference SAE J534
Material Certificates Available.
Available For Special Order
Zinc-Nickel Plated – 151607U (AS15003-2U)
Cadmium Plated – 151607C (AS15003-2C)

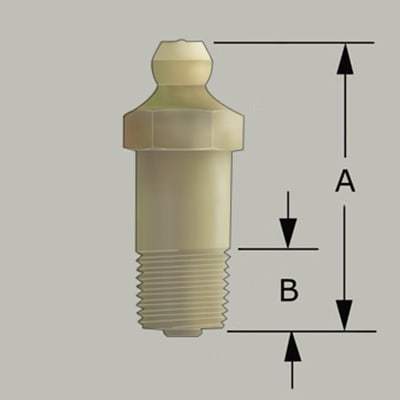

Dimensions & Attributes
| Angle | 直的 |
|---|---|
| Ball Check | 是的 |
| Dimension A (Inch) | 1.25 |
| Dimension B (Inch) | 0.19 |
| Hardened | 是的 |
| Hole | 1/4 UNF |
| International | Aerospace, AS 15001-1P |
| 产品类型 | 液压油嘴 |
| 材料 | 低碳钢 |
| Spanner Wrench Size | 5/16英寸六角 |
| Thread | 1/8 x 27 PTF |
| 螺纹类型 | 美国人 |
| Zinc Plating | Zinc Yellow Chromate |
