Product Code: 205530

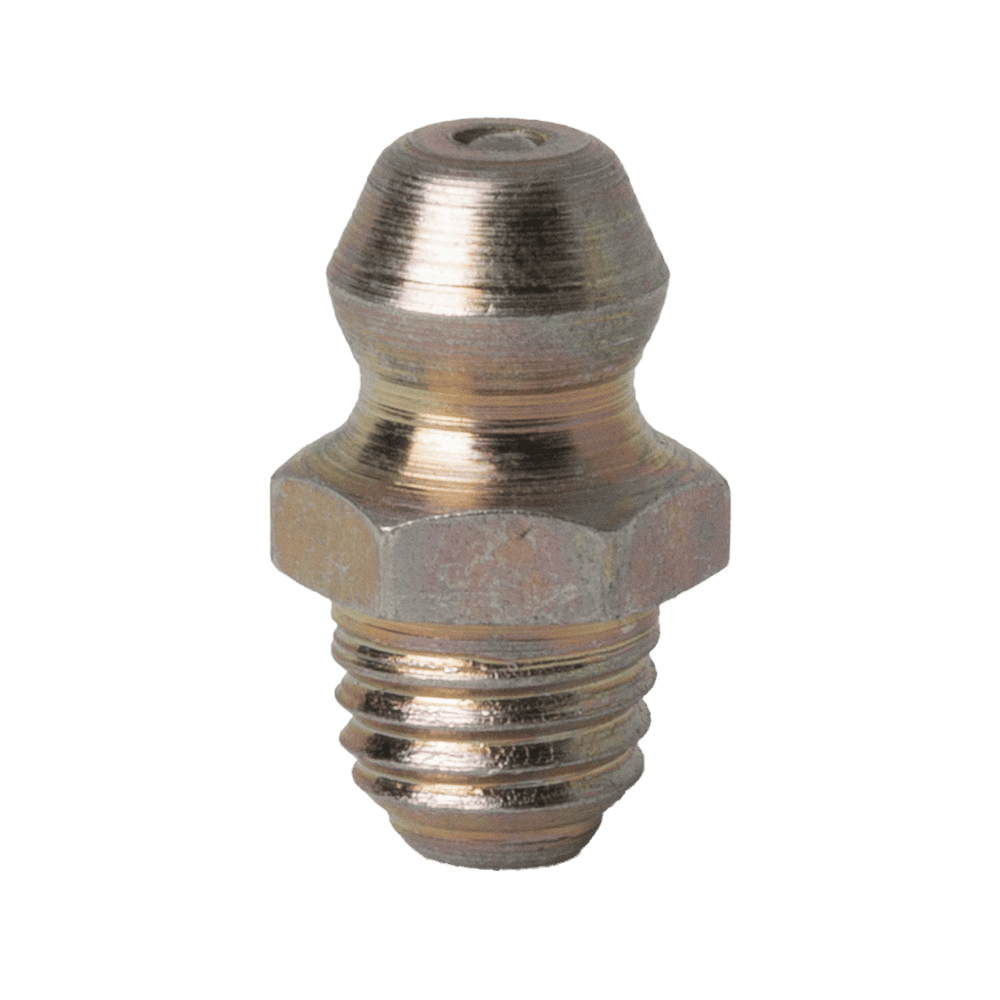

1/4 x 28 SAE Self-forming Thread – Straight Hydraulic Grease Fitting Hardened Steel Zinc Plated Yellow
205530
描述
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/4 x 28 thread is 5.84-5.97mm (Ref SAE J534) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Dimensions & Attributes
| 重量 | 14 公斤 |
|---|---|
| Angle | 直的 |
| Ball Check | 是的 |
| Diagram | Fig.1 |
| Dimension A (Inch) | 0.56 |
| Dimension A (mm) | 14.2 |
| Dimension B (Inch) | 0.21 |
| Dimension B (mm) | 5.3 |
| Dimension C (Inch) | 不适用 |
| Dimension C (mm) | 不适用 |
| Hardened | 是的 |
| Hidden | 不 |
| Hole | 参考 SAE J534 |
| International | SAE J534 |
| 产品类型 | 液压油嘴 |
| 材料 | 低碳钢 |
| 产品长 | Normal |
| Spanner Wrench Size | 5/16英寸六角 |
| Stock Item | Class 2 Parts |
| Thread | 1/4 x 28 特殊锥度 |
| 螺纹类型 | 自成型 |
| Zinc Plating | 是的 |
